26 Oct CDC Shaker Kit Install on a Mach 1 Hood
This is from CDC site
Will your CDC Shaker Kit work with a stock Mach 1 Hood? Our Shaker System will not work with the factory Mach 1 Hood. The CDC Shaker will sit to low and too far back in the factory hood’s opening. Modifying the mounting brackets to adjust the Shaker in the factory hood will alter the relationship of the Shaker to the air filter housing, thus rendering the CDC Shaker Air Tube unusable and the system non-functioning….YA RIGHT
—————————————————————————-

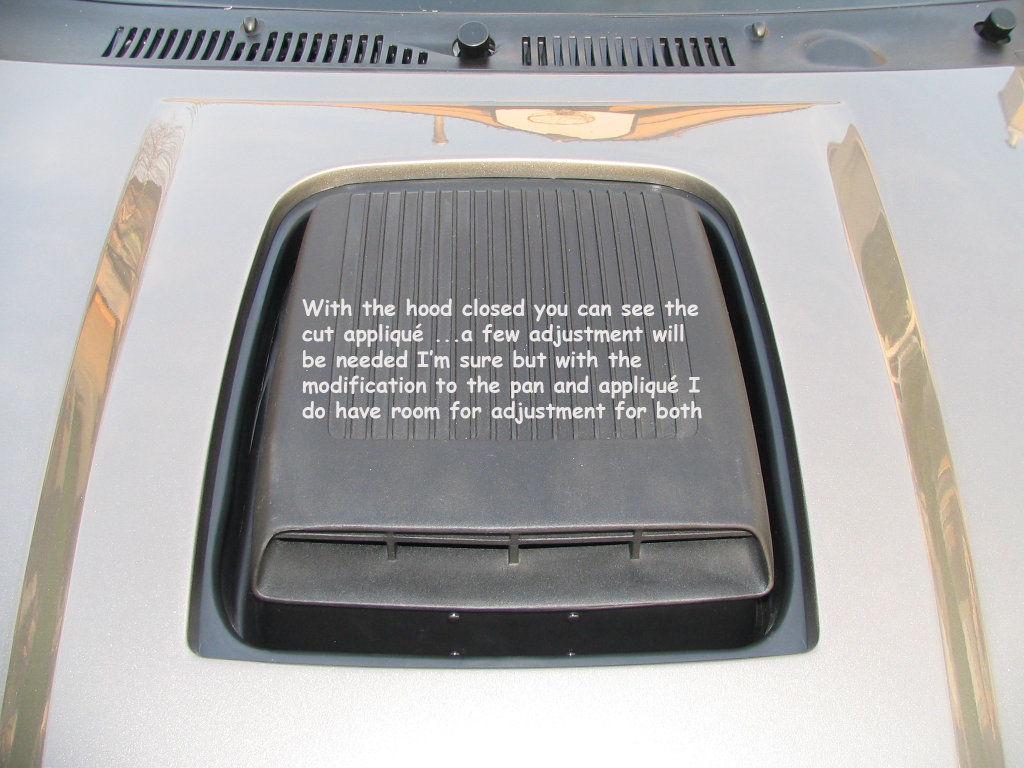

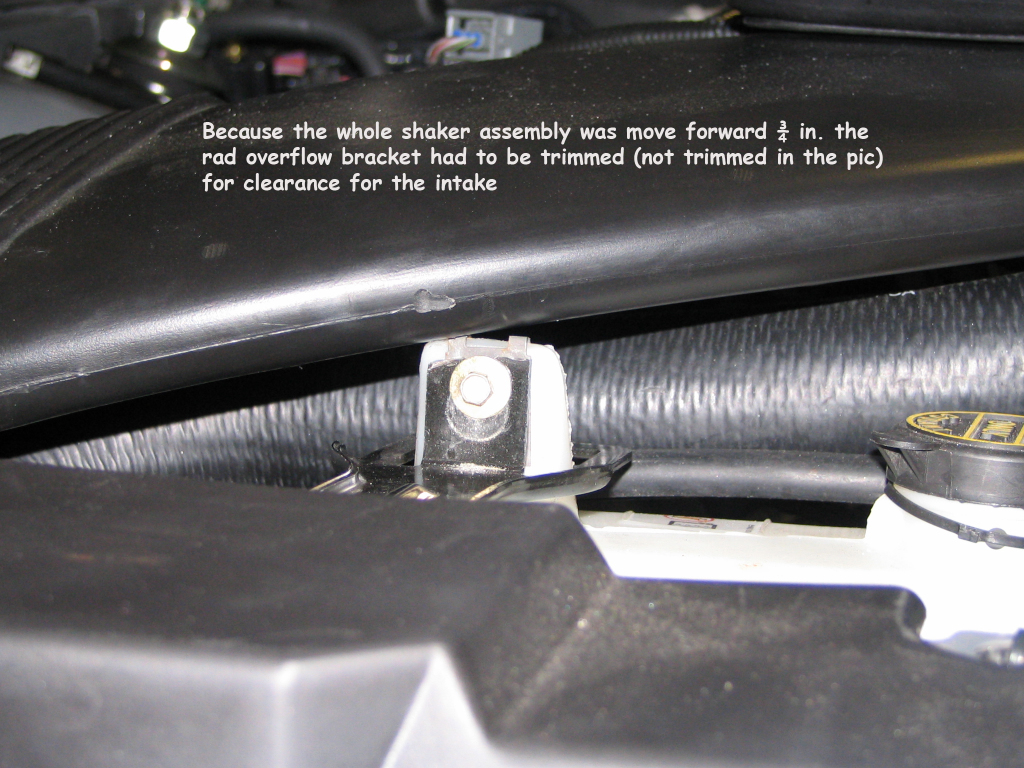

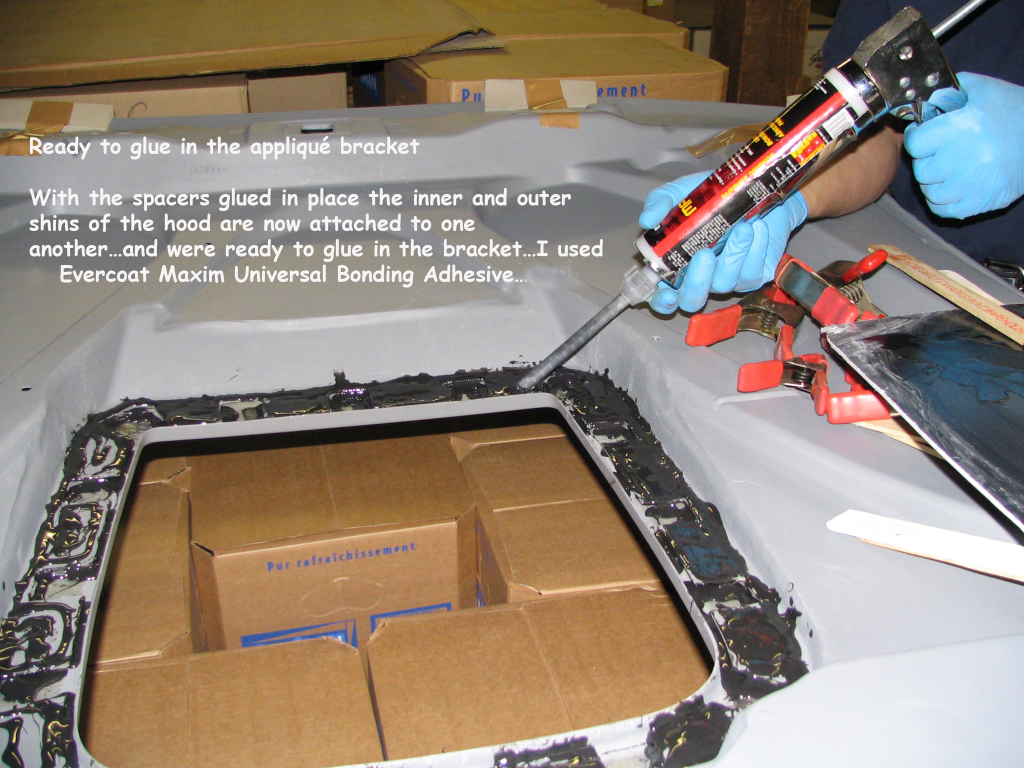

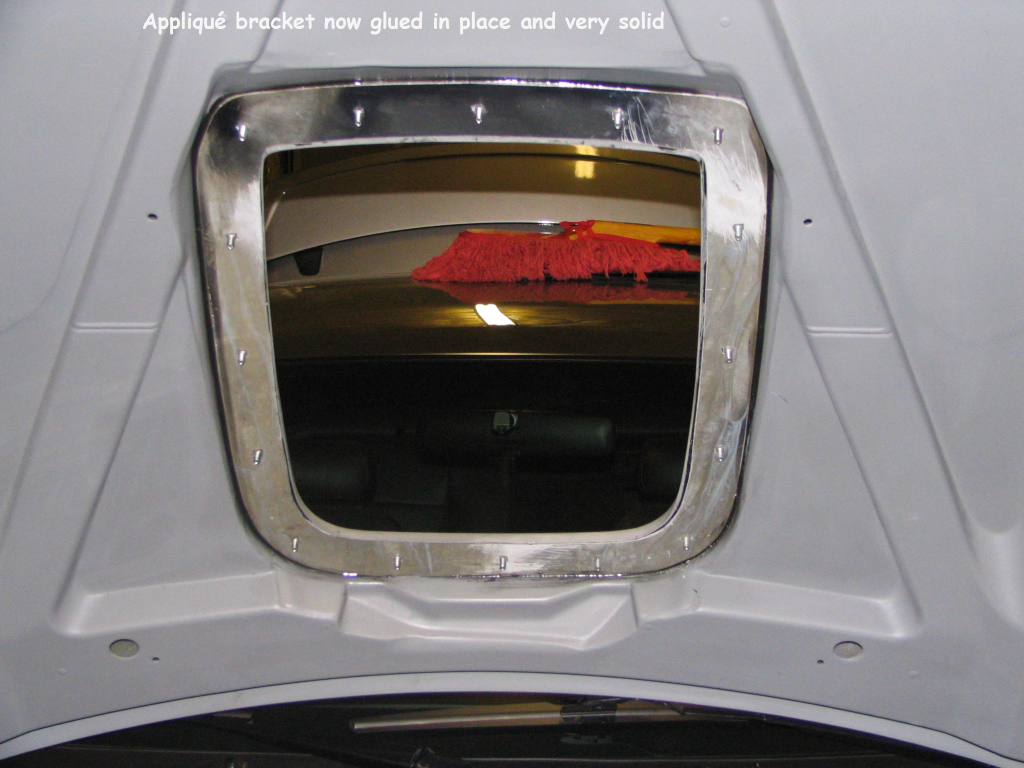

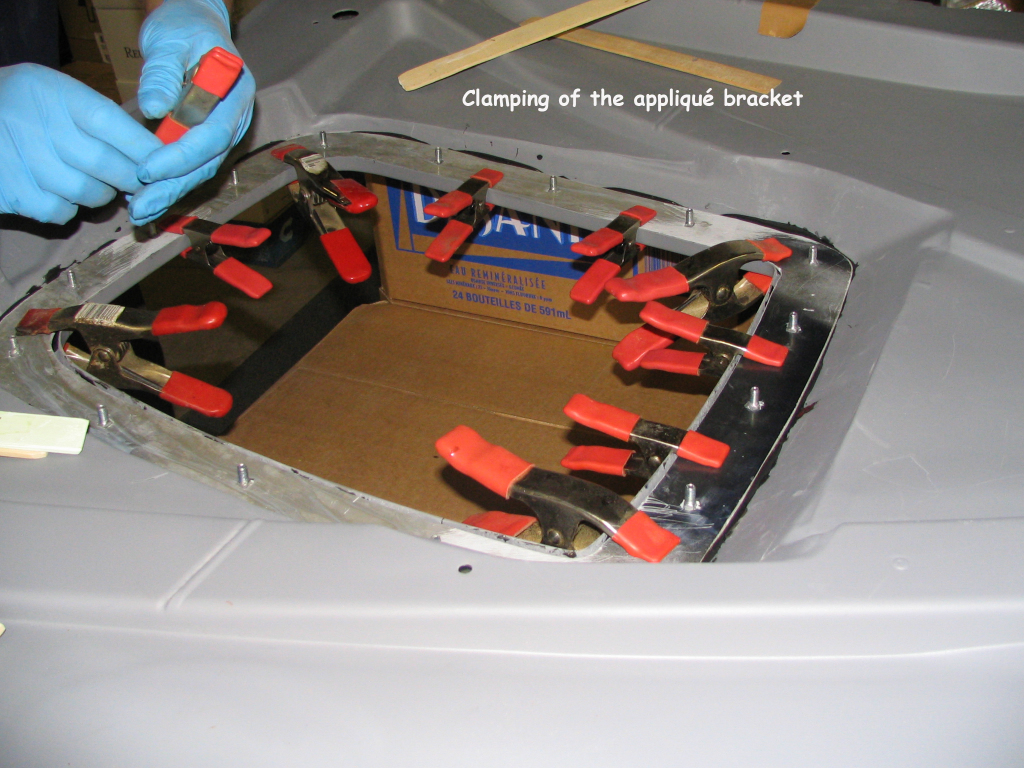

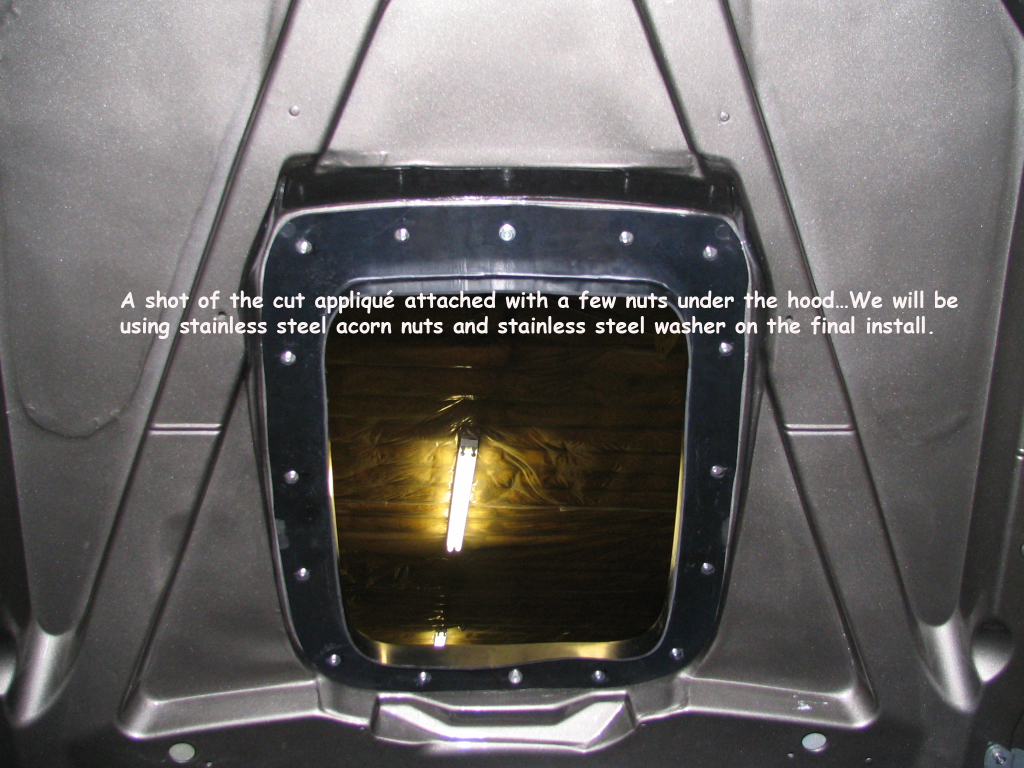

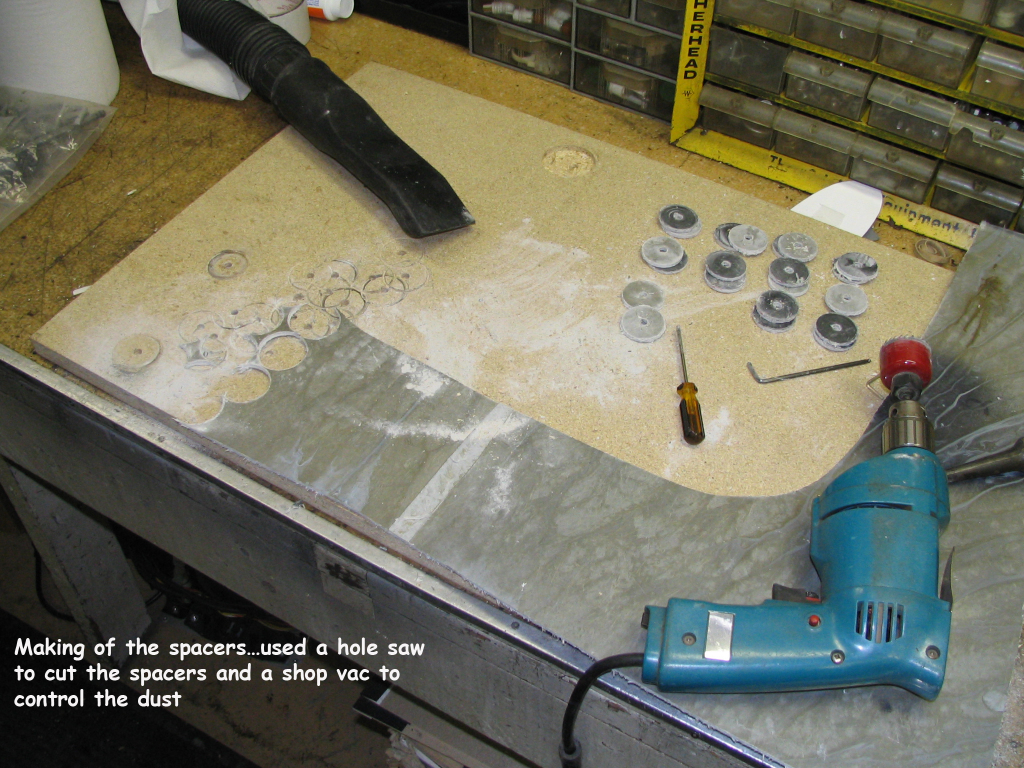

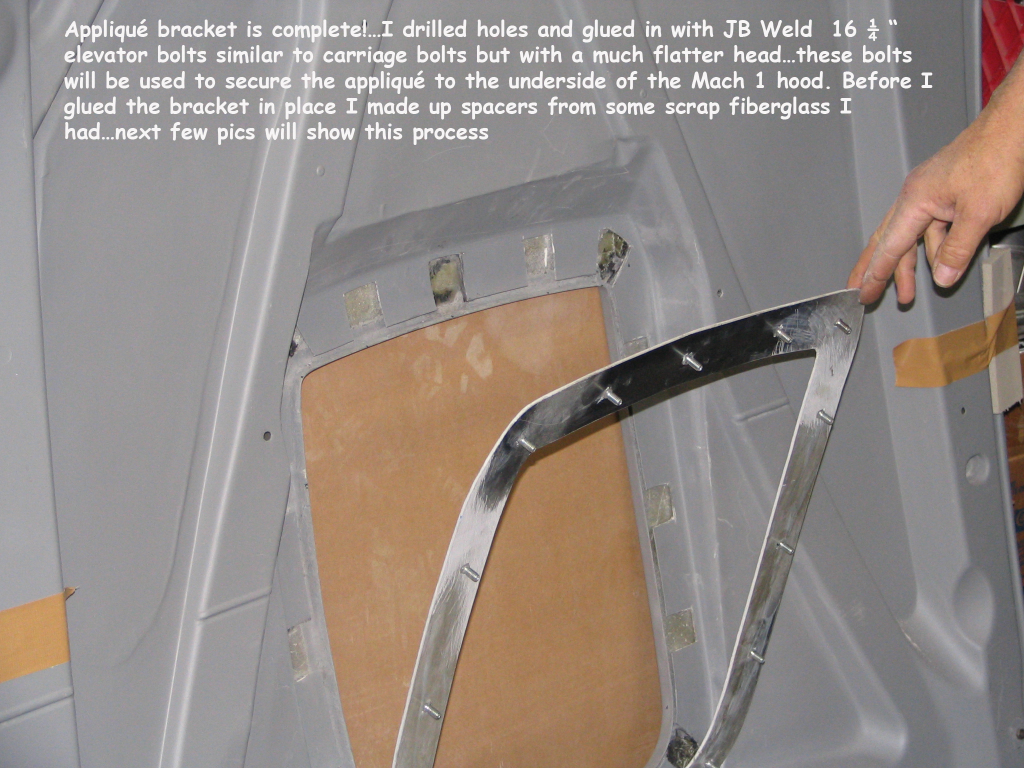

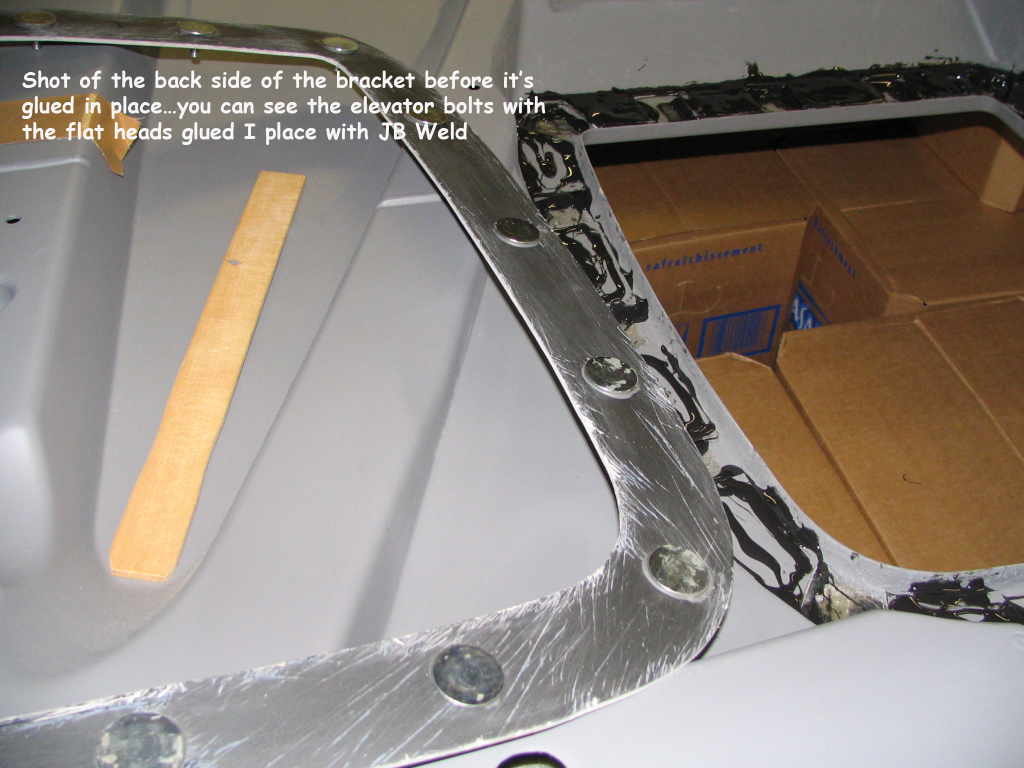

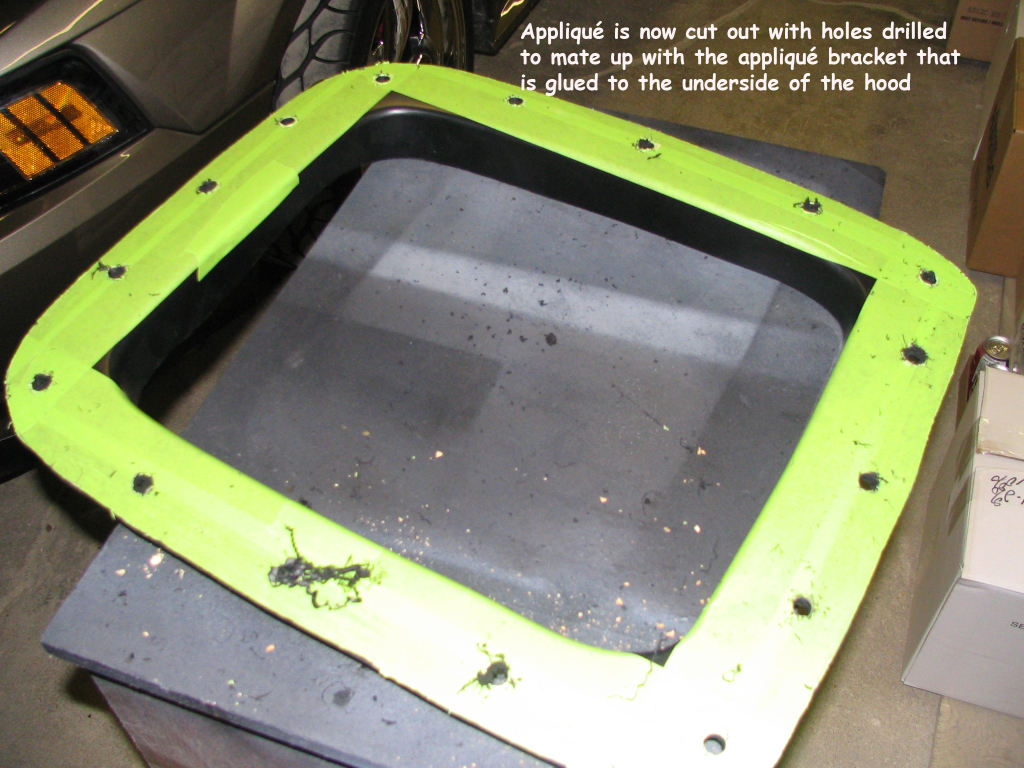

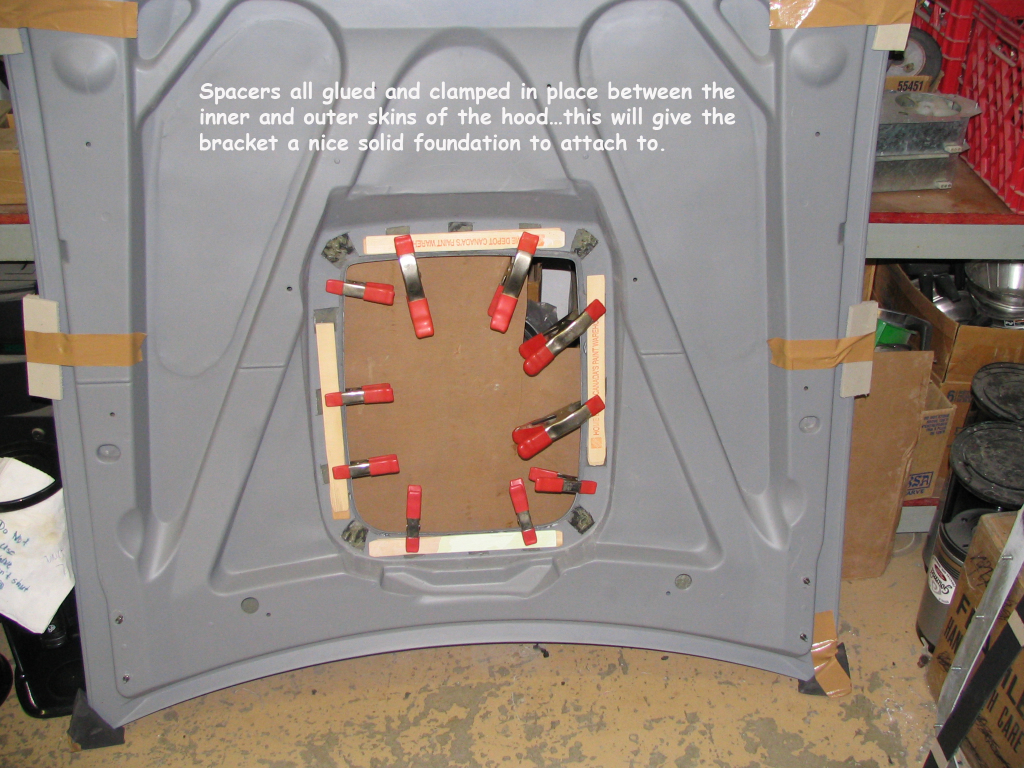

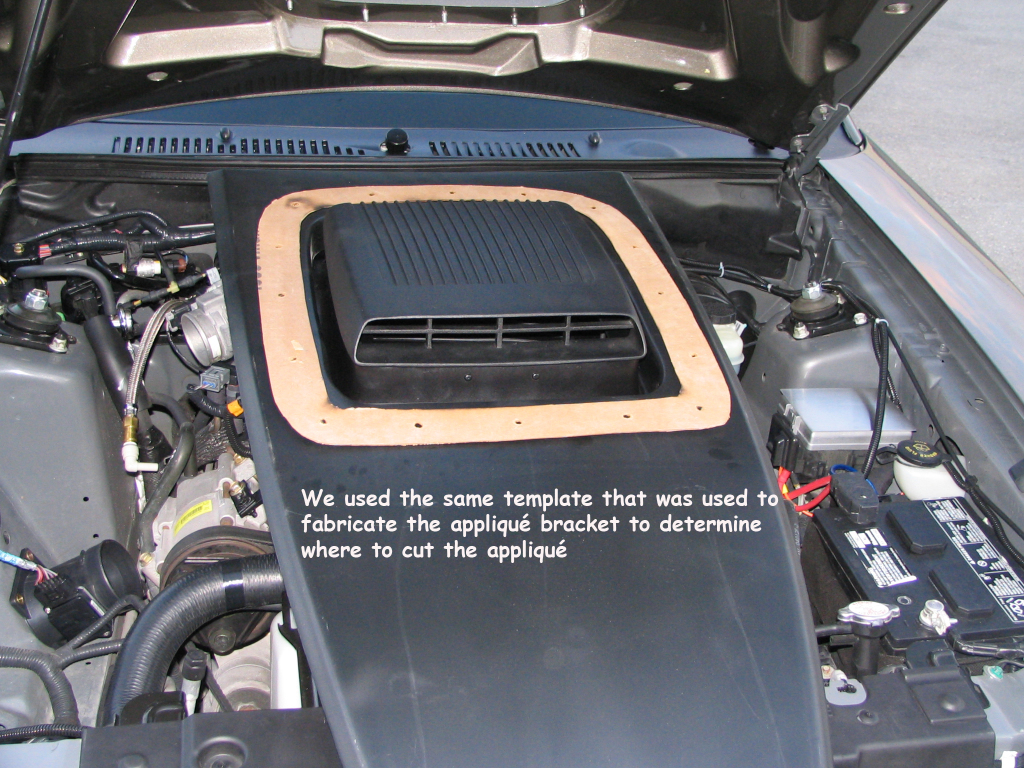

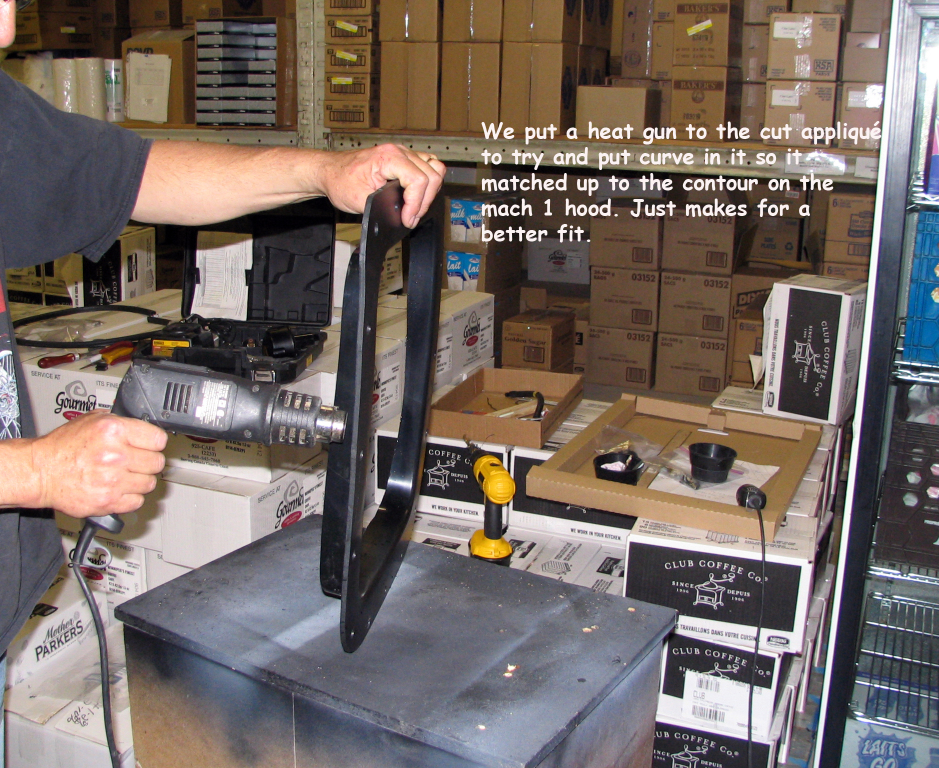

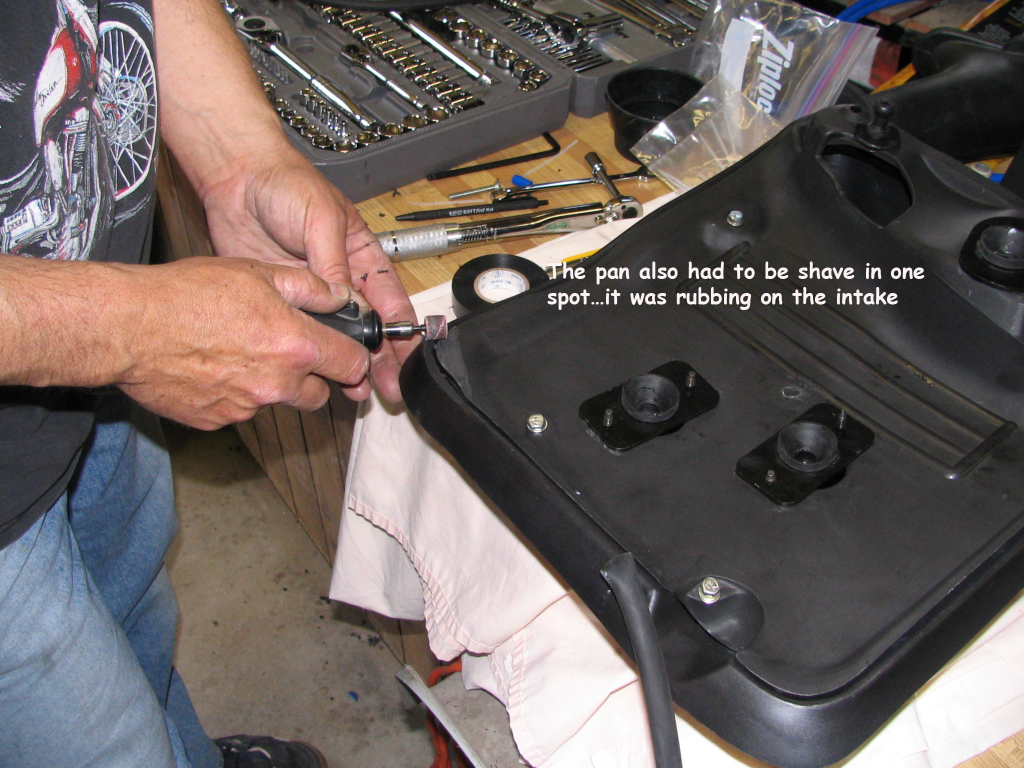

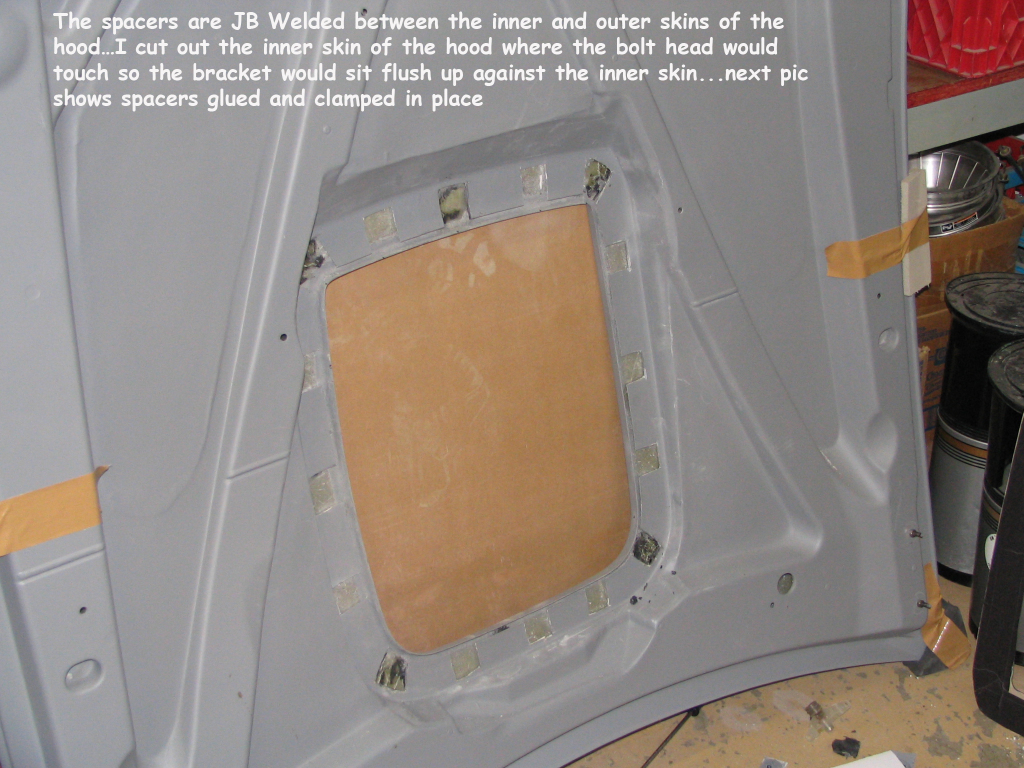

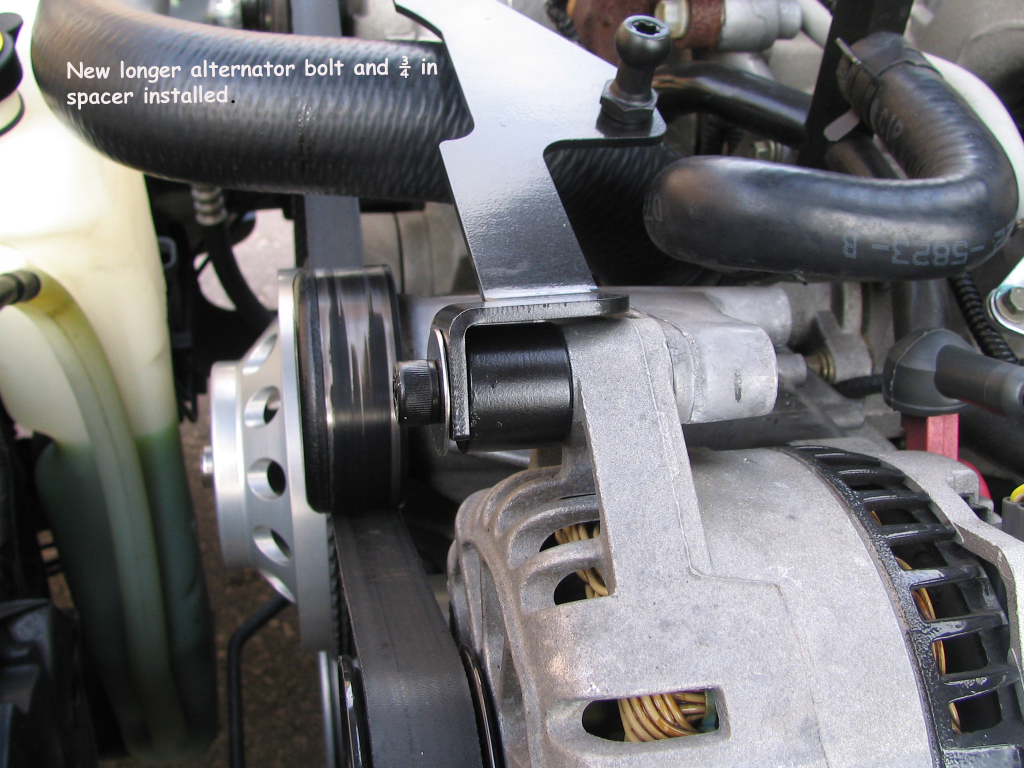

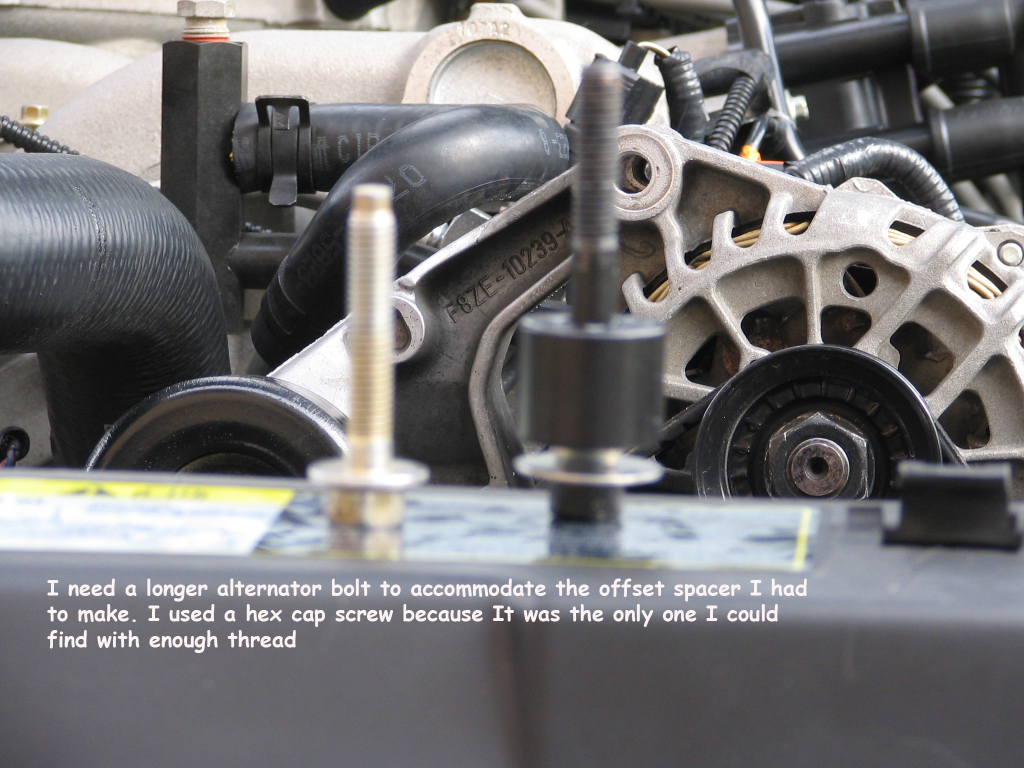

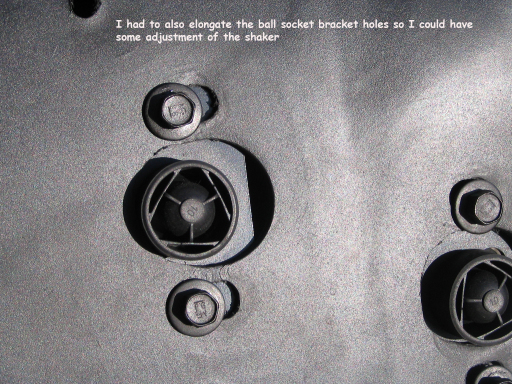

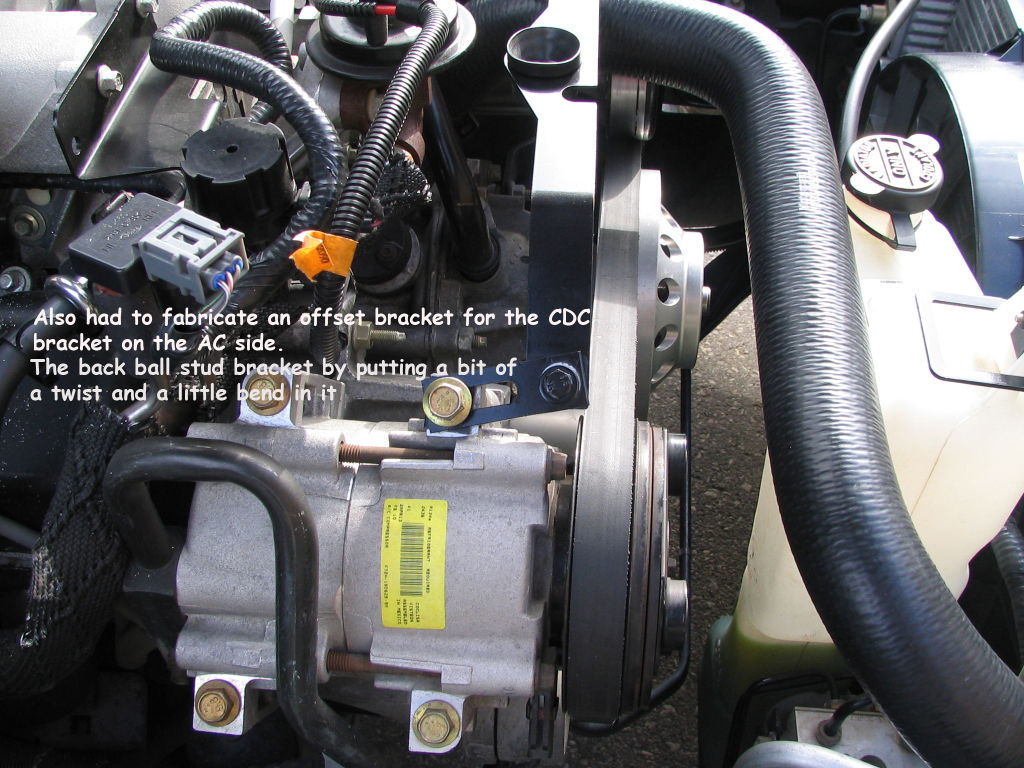

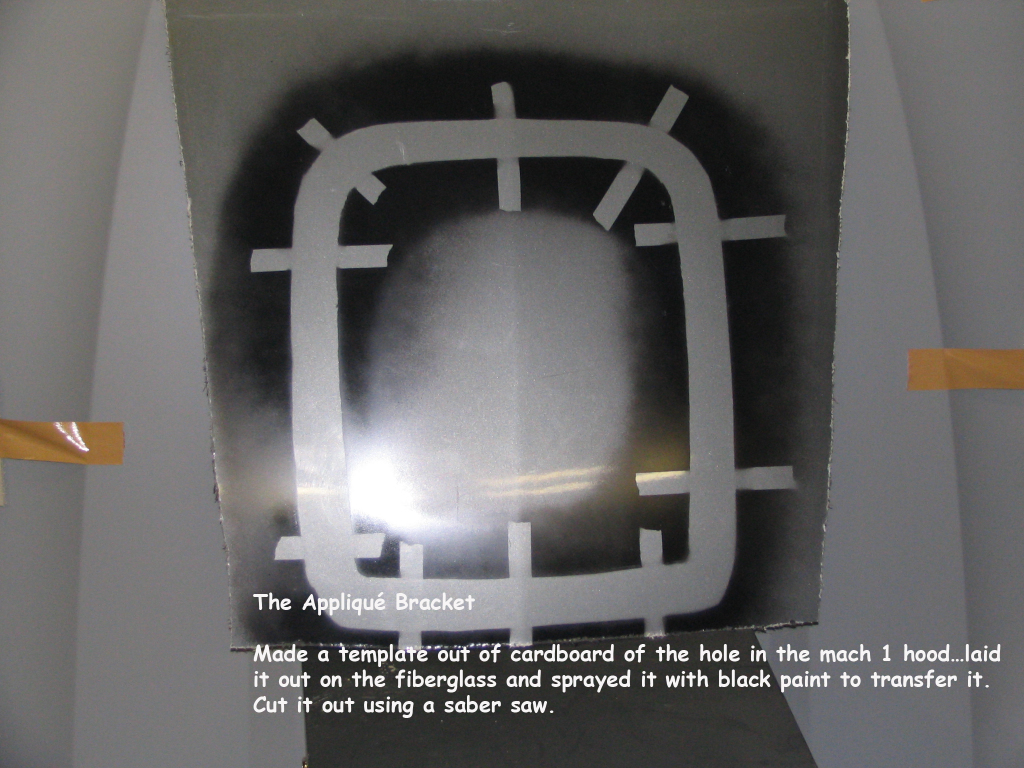

Well I can tell you that you can use a CDC shaker kit with a Mach 1 hood…it is true that it does in fact sit too low and far back by about ¾ in but this is easily solved by fabricating a spacer and a bracket for the front CDC bracket and a bit of twist and bend in the back bracket is all you need. The intake fits just fine with only a small clearance issue with the radiator overflow bracket…this is solved with a dermel tool. The drain pan on a stock Mach shaker is larger than the CDC drain pan…we solved this small problem by fabricating a bracket out of fiberglass and affixed it to the underside of the Mach 1 hood. The appliqué was then cut and attached to this bracket. Basically the appliqué was used but on the underside not the top

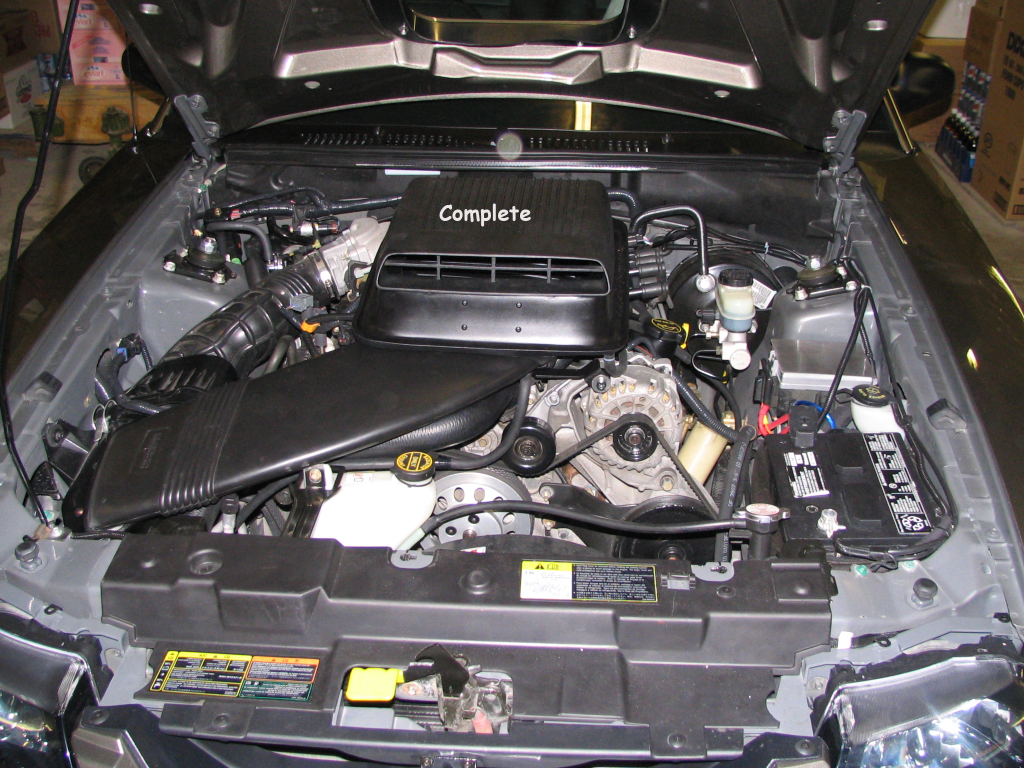

The pics below should give you a clearer picture on how all this was done…we should have taken a few more but you know how it is when you get into a project…you forget to take pics
found @ http://www.3.8mustang.com
written by: 2kids3pets
Aladio
Posted at 01:41h, 14 March 2011mach1 hood vs cdc shaker
can you email me the info needed to complete this I want to install the mach 1 hood but need to know what i need to do to get the aftermarket shaker system to fit i have a 2002 GT. thank you so much if you can help me out on this one.
Mike
Posted at 10:31h, 14 March 2011Re: mach1 hood vs cdc shaker
All the info you need is right here, just print this write up.
BRIAN
Posted at 19:15h, 17 July 2012MACH 1 SHAKER SCOOP ON 2001 GT
I HAVE A OEM SHAKER ASSEMBLY I INSTALLED ON MY 01 GT WITH CUSTOM BRACKETS I PURCHASED ONLINE FOR 85.00. MY PROB IS THE ABSORBER BUSHINGS ( I CALL THEM) THAT GO BETWEEN THE SCOOP N BRACKET ARE BROKE ON MINE, DOES ANYONE KNOW WHERE TO GET THESE?
Dennis
Posted at 23:33h, 25 March 2018OK, not holding out much hope of getting a response from you either, but what the hell – where did you get the brackets to mount the OE Mach 1 shaker scoop to your GT? As far as I can tell, no one has them available any longer. You wouldn’t still happen to have them, and would be interested in selling them, do you? Thanks.
Dennis
Dennis
Posted at 05:44h, 24 March 2018Adapting CDC Shaker To Mach 1 Hood
I realize this (awesome) write-up is probably at least 7 years old, but I’m wondering if the original poster is still around/available? I’ve got a 2002 Mustang GT (coincidentally, Mineral Gray, as the Mustang in this write-up appears to be!) that I bought about 2/½ years ago, and I’ve always wanted to put the CDC shaker hood scoop system on it. I’d also like to use the Mach 1 hood with it, and I’ve got some questions about doing that, as I’m not quite clear about every step of these instructions. Thank you.
