How To Equip Your 87-89 Mustang with HID Headlights – Projection!

First, before I begin the write-up, let me give a little lesson on HID lighting.

This website give a lot of very good information about halogen vs. HID lighting:
http://www.intellexual.net/hid.html

To paraphrase some key points from the site above:
High Intensity Discharge systems consist of a bulb and a ballast/ignitor. The ballast acts as an ignition box to fire up the gas discharge process. The bulb itself is filled with a mixture of noble gases as well as alkali earth metal salts. In this setup, the noble gases and metal salts are actually used as part of the lighting processes. The ballast takes in a small amount of input power of 35 watts at 12 volts and inducts a solid-state charge of 25,000 volts to the positive electrode. This creates a very high-powered arc of electricity across the electrodes, which excites xenon gas into discharging photon particles (light).

The problem:
Most people think that they can put HIDs in their car by purchasing one of these plug and play kits. This can be done, and it will give better light output than stock halogen bulbs. However, it is the totally WRONG approach. HID bulbs produce a very bring light, that is obvious. The key thing is focusing this light properly and safely. The light emitted from an HID bulb and a halogen bulb is not the same. HIDs have different optics compared to halogen. It requires a special type of reflector housing or a projector.

The biggest problem with just throwing an HID “kit” is the glare caused to oncoming drivers. Halogen housings are not made for HID bulbs. The light gets scattered in all kinds of directions instead of being focused towards the ground like it should be. This creates a nightmare for oncoming drivers and it can be very dangerous.

The solution:

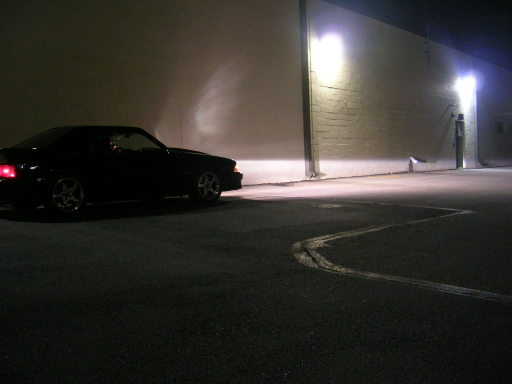

Equip a halogen housing with HID projectors. This is a VERY custom job and takes a lot of time and patience. There are a lot of different projectors out there to choose from. Some are small, some are large. Some have HID high beams, some do not. The Fox housing is rather large so size was not an issue for me. That is why I chose to use a set of BMW E46 bi-xenon projectors. The bi-xenon means that I have both low AND high beam capabilities.

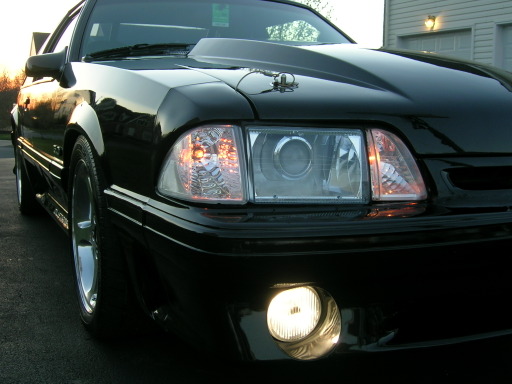

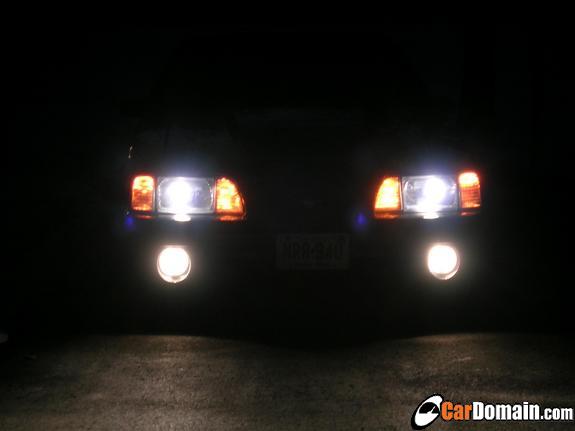

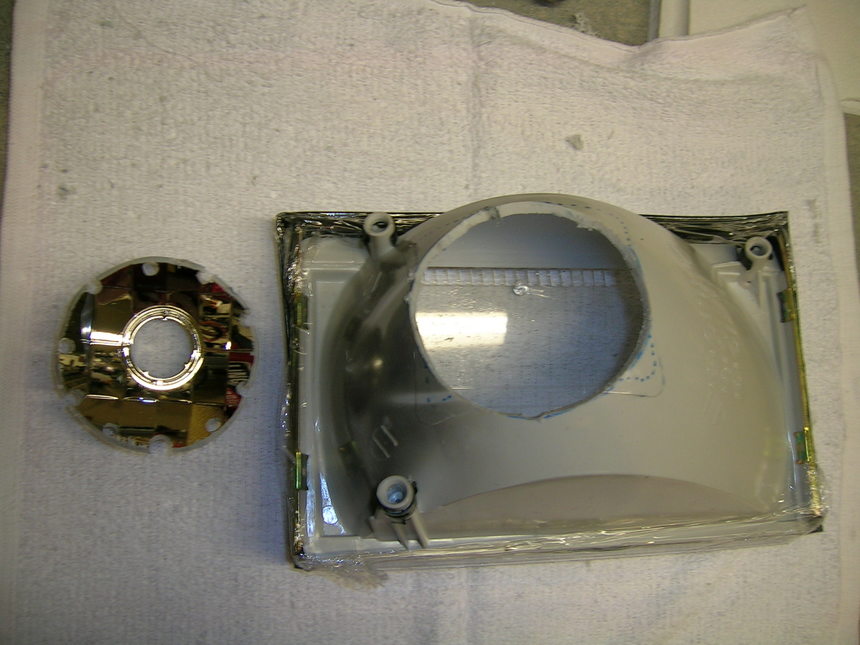

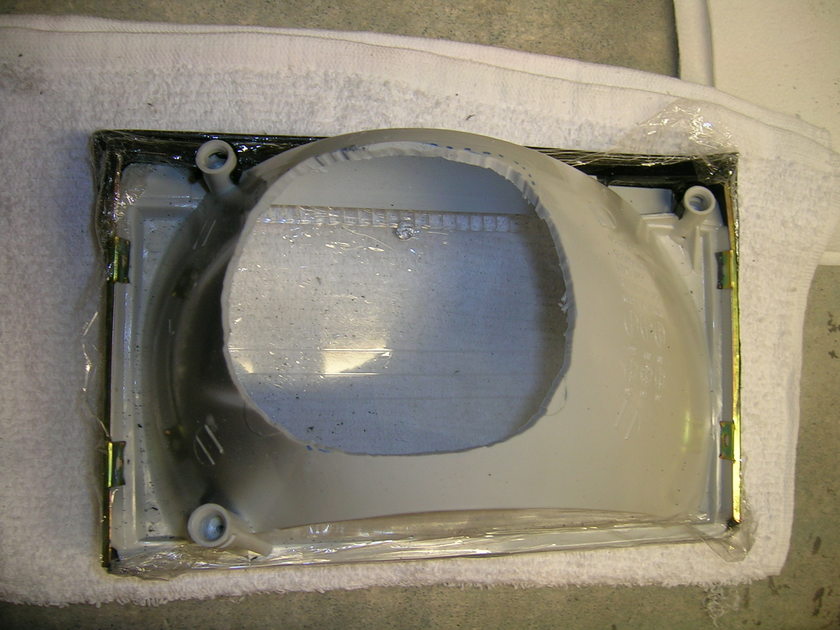

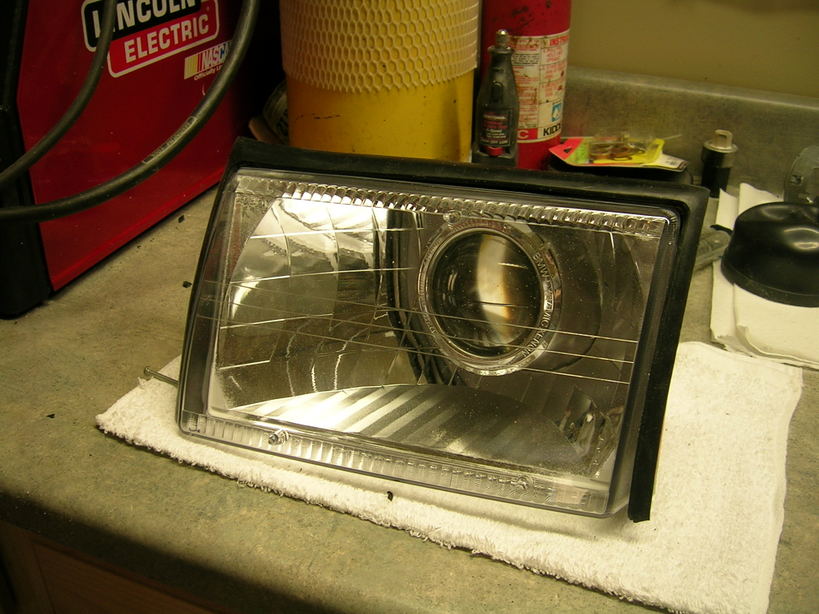

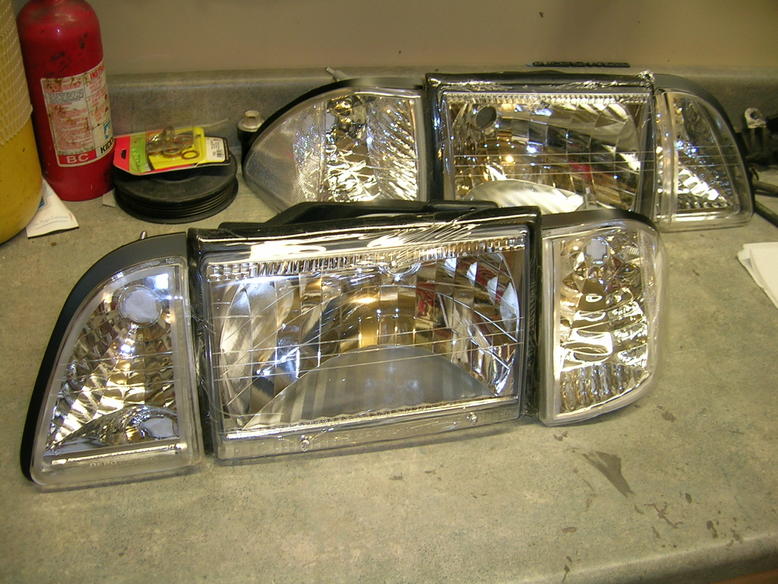

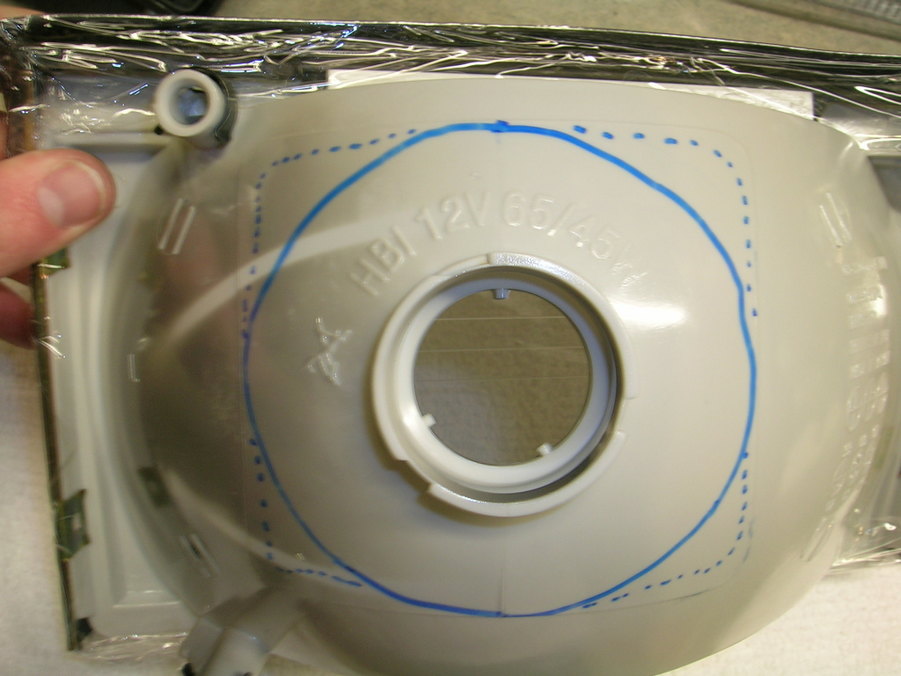

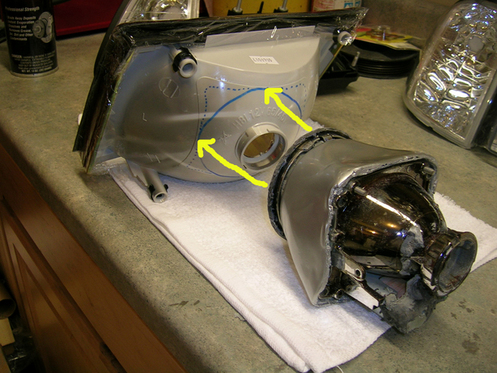

These are the housings that the projectors are going into:

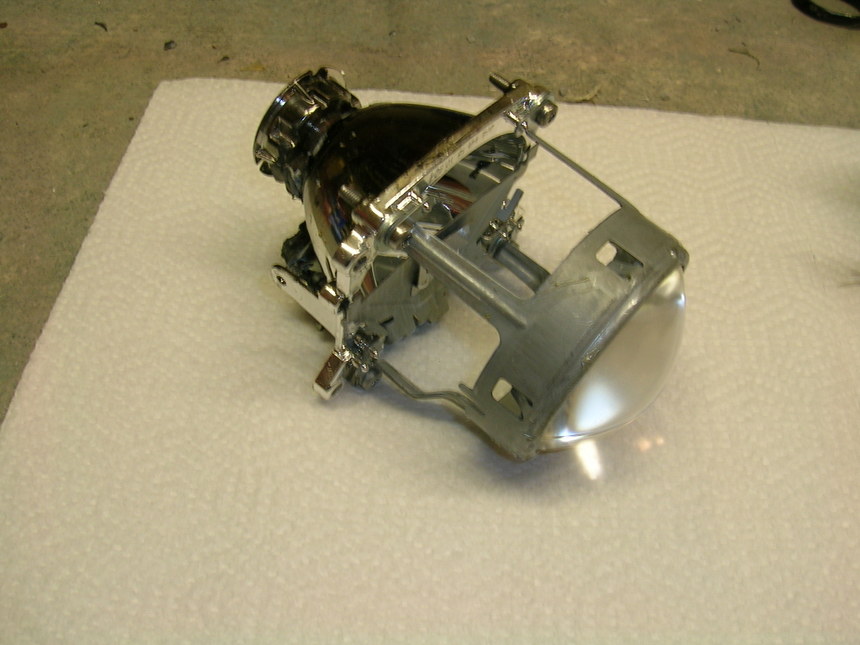

Here is a picture of the projector itself

Because of the type of projector I chose, I had to do a little extra modification to get it to work properly. I needed to create a shroud around the open area between the lens and the bulb. I only want the light to shine through the lens, not anywhere else. In other words, I need to create a “sealed” beam.

So my solution was to create a shroud out of fiberglass. This was my first time ever working with fiberglass, so if it’s not perfect, that is my excuse, hah.

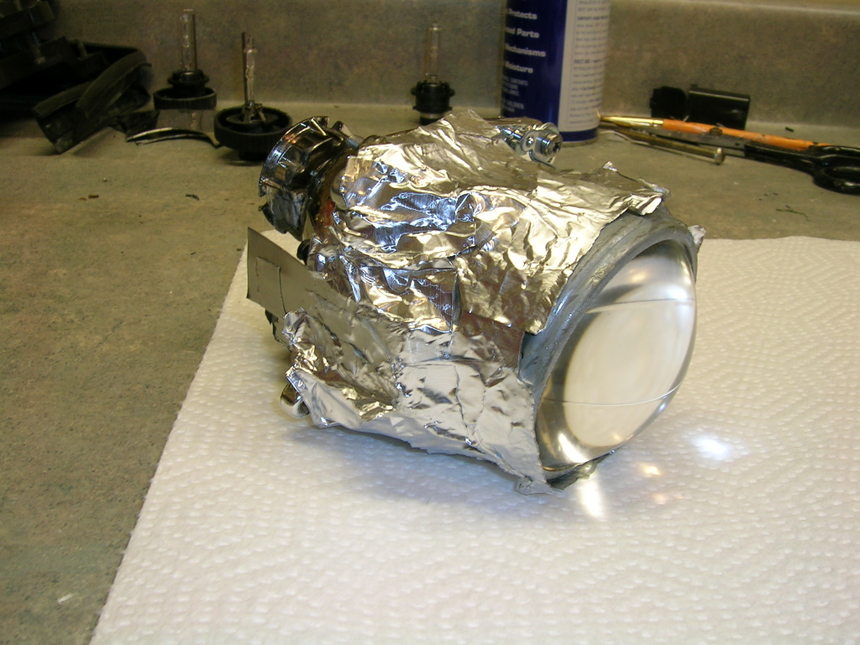

I used aluminum foil and strips of thin aluminum to lay the fiberglass on:

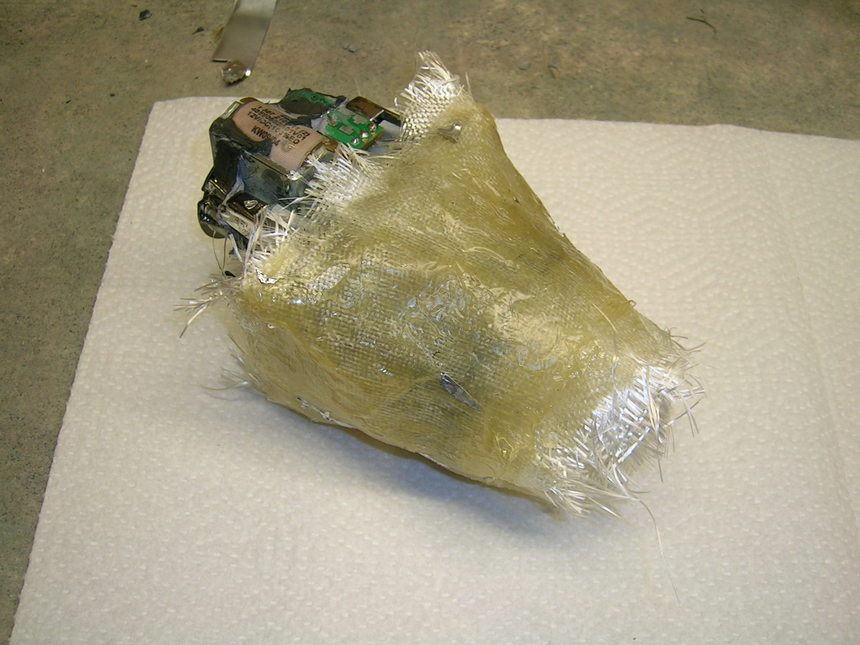

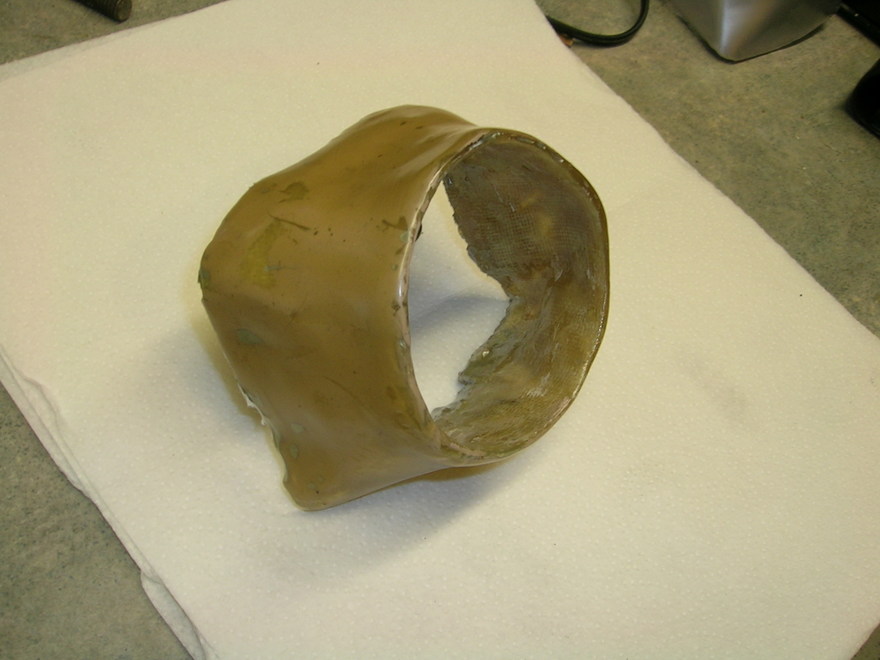

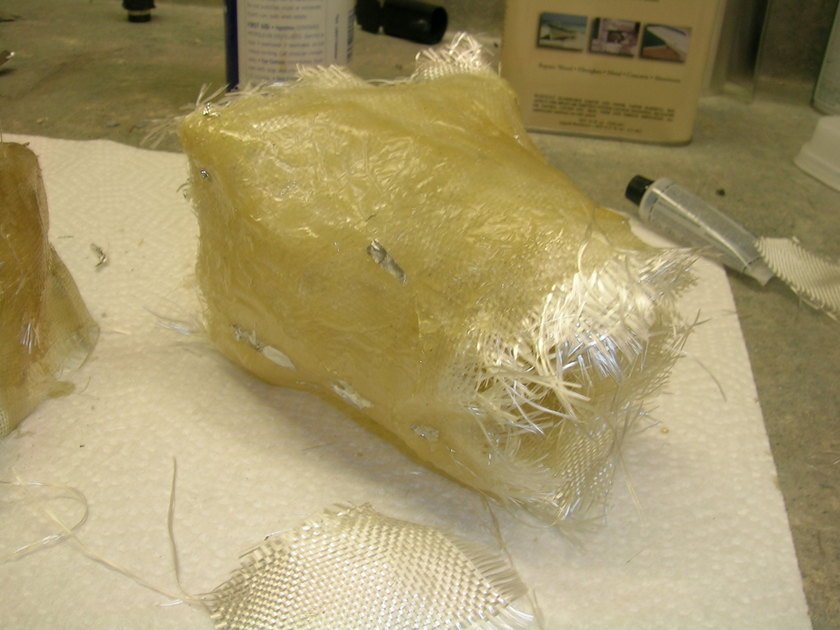

Then I layered the glass:

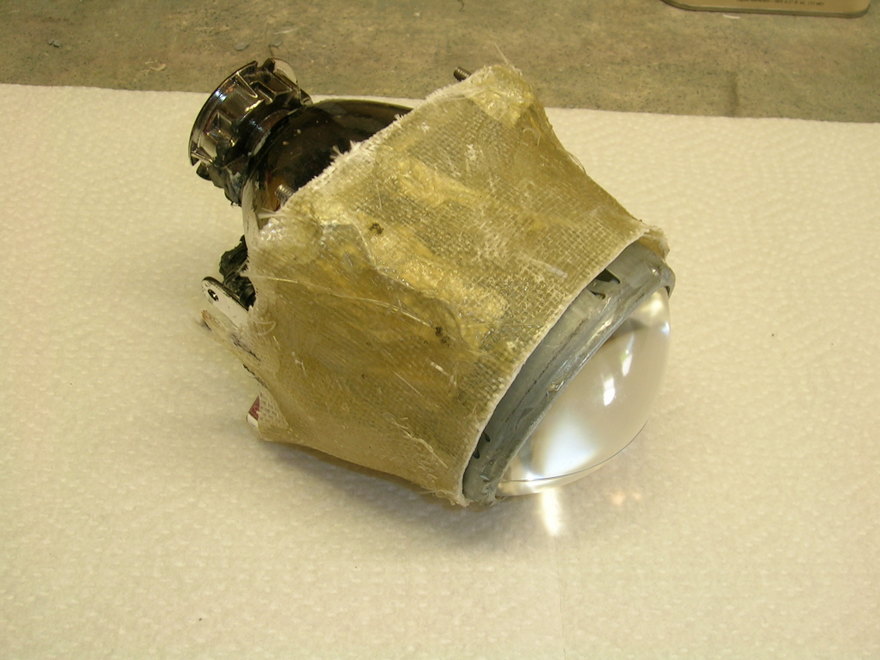

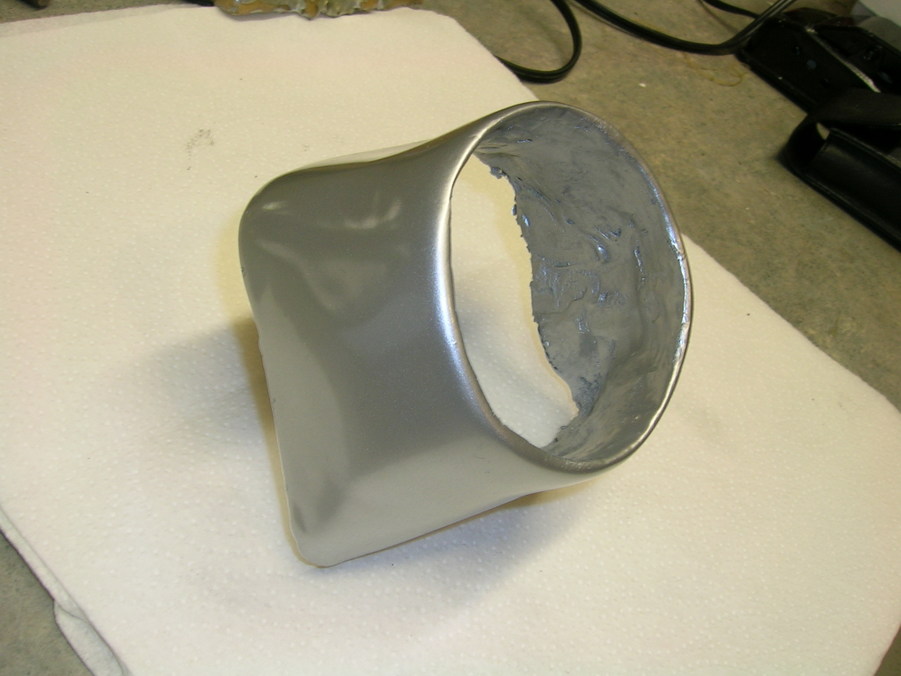

trimmed it:

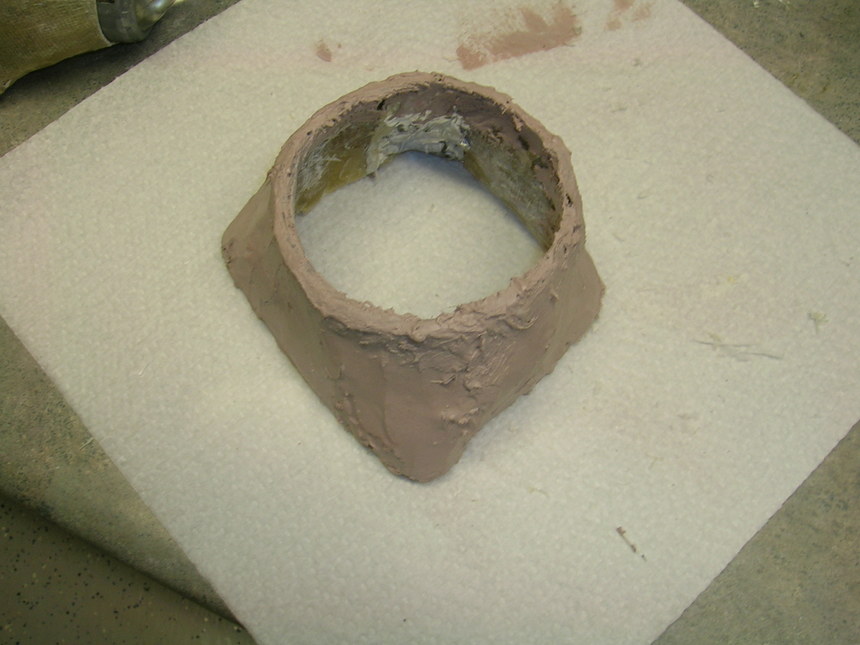

put some filler on

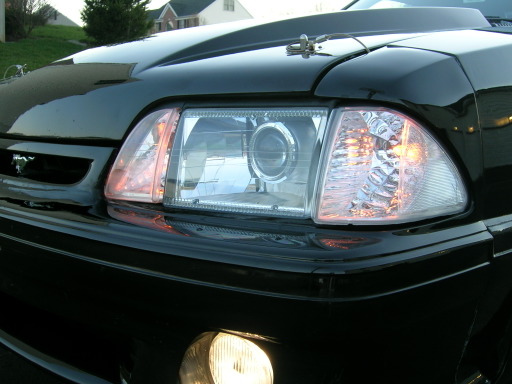

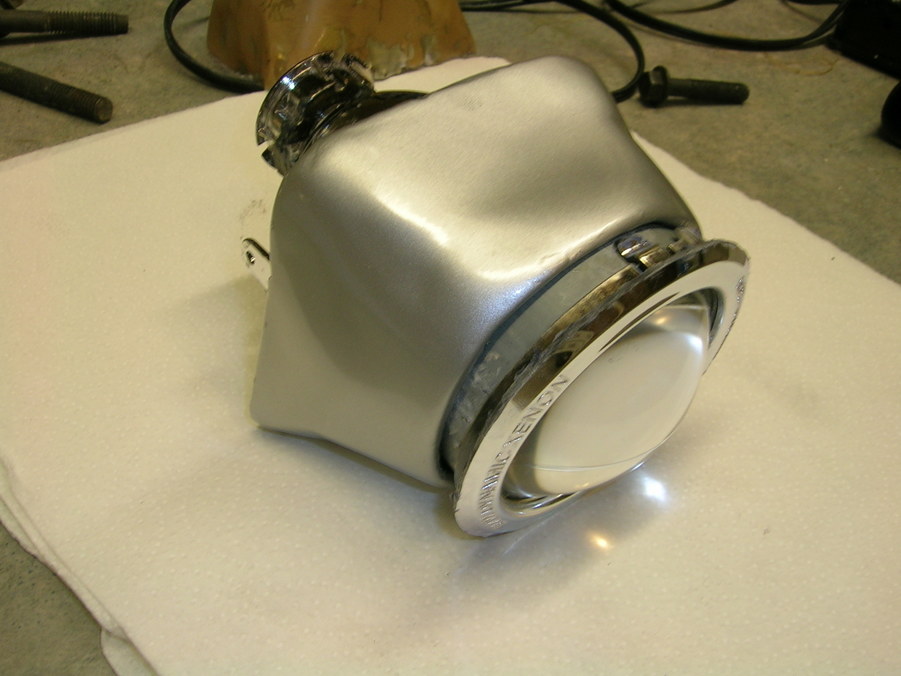

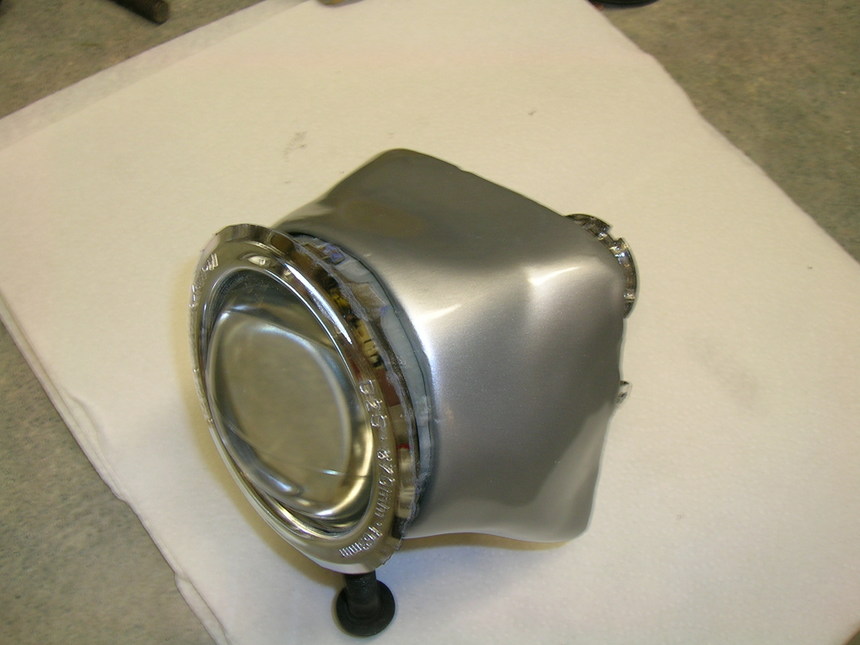

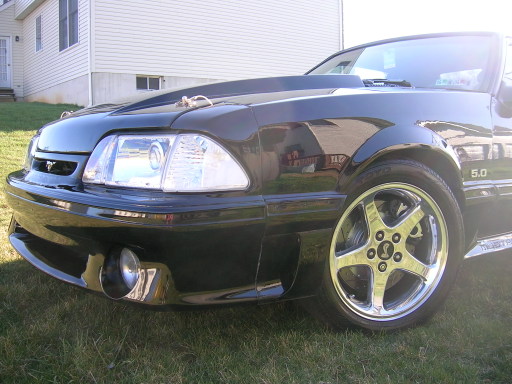

Here’s the passenger side which is ready to be mocked up in the car and aimed.

Now for the wiring/electrical part. This is one of the most important parts of the install. A typical HID bulb operates at 35 watts and pulls about 3 amps of current, compared to a halogen’s 55 watts. Not only do they take less power to run, but they burn cooler and create less heat than a halogen bulb. However, there is one issue. When you flip the headlight switch to turn on your headlights, all those gases in the bulb must be ignited. This occurs during the first 5 seconds after the lights are turned on.

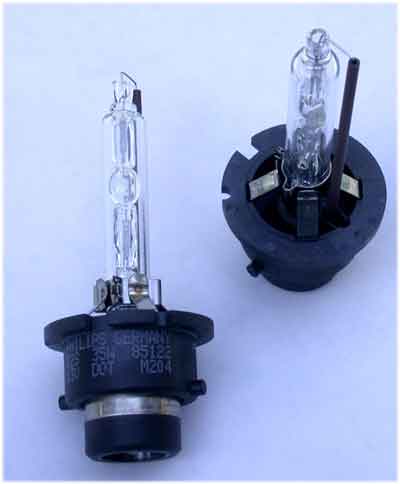

Here’s what an HID bulb looks like, for those of you that don’t know. You can see a small round bubble in the middle of the bulb. That is where the salts are that get ignited. There are 24,000 volts running through those bulbs when they are on.

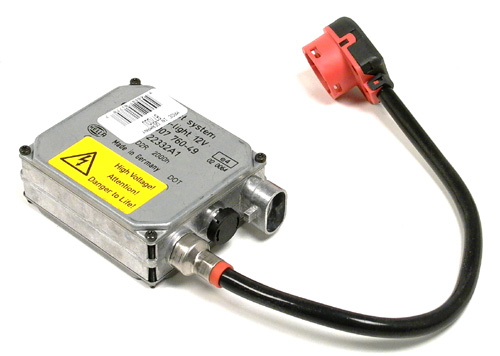

Here is the ballast/ignitor that powers the bulb. The red connector attaches to the end of the bulb. The other side of the ballast is where it gets it’s 12v source and ground from the car.

You may notice that when a BMW or Audi turns their lights on, they come on very blue and then slowly turn whiter and whiter. This is what the bulb does when it warms up. During this warm up period, the ballast/ignitors draw close to 15 amps of current for each bulb, which is much more than the stock wiring can take. After a little while the wiring isn’t going to take that abuse anymore and will probably burn up. To fix this problem, an additional wiring harness consisting of relays is required. The relays take the grunt of the high current so the stock wiring doesn’t have to. There are tutorials online that show how to make one, or you could just buy one already made for around $50. Amazon sells pre-made plug and play wiring harnesses. And besides, an upgraded headlight harness should be on of the first things upgraded on our fox bodies. They didn’t exactly come with great wiring from the factory.

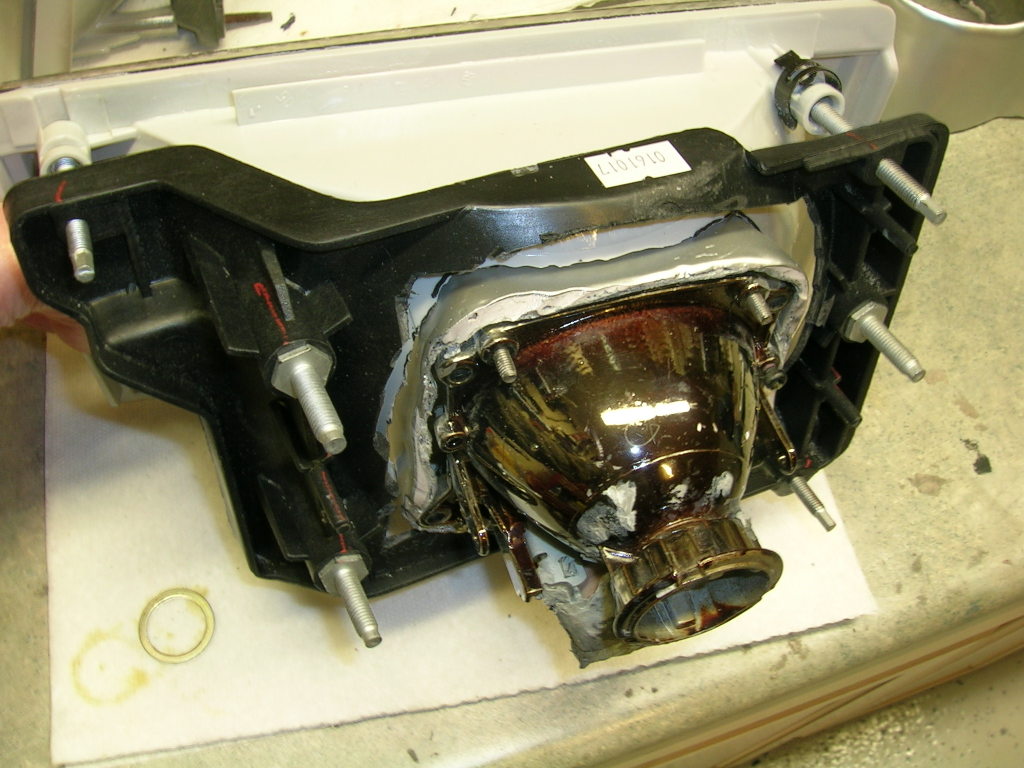

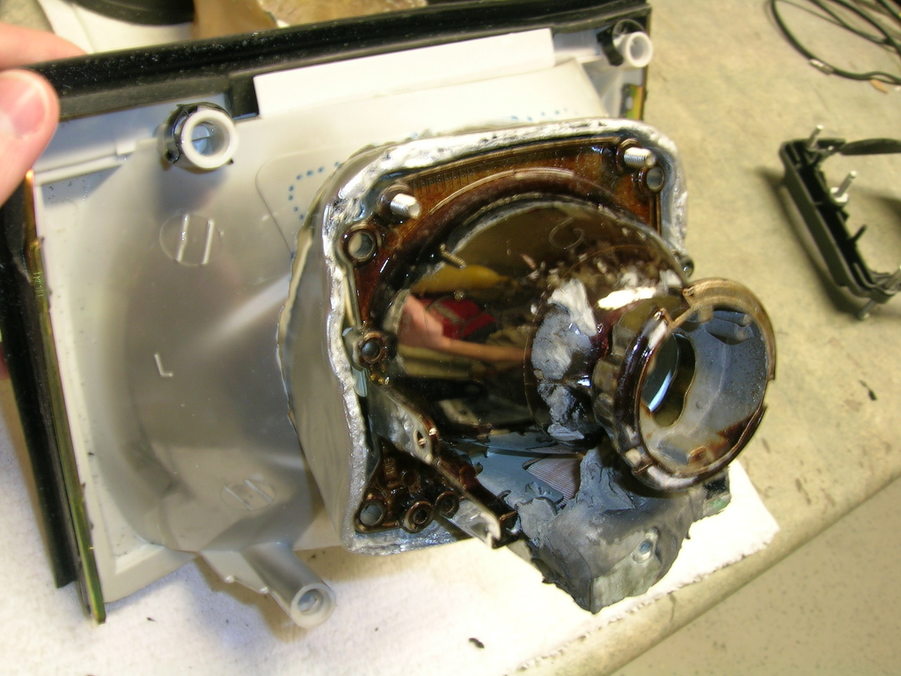

To mount the projectors to the housing, I used epoxy, JB Weld , as well as some Quik Steel. There is no way that the projectors will ever be able to break loose from the housing. They are in there for good.
