26 Oct Treadstone Intercooler installed, converted to Blow-Thru MAF and Kenne Bell BAP
After installing the CXRacing Intercooler and setting up my car as a draw-thru system, I brought the car into Wicked Motorsports to have Kevin Hand take a look at it. We determined that the car was tailing lean and found that the CXRacing Intercooler was loosing 4 – 6 PSI after logging it pre and after. As I said, the car was set up as a draw-thru system which means the location of the MAF (Mass Airflow Meter) was just after the K&N Filter . That means the air was being measured right after the filter rather than right before the throttle body. I didn’t like the fact that the air traveled through the piping, in the intercooler, through more piping, then into the engine. The readings cannot be 100% accurate that way, so I decided to change it. We relocated the MAF to right before the throttle body which means we converted the
from a Bypass Valve (which recirculates the air) to a Blow Off Valve (which blows the excess air into the atmosphere). My fuel pump was also struggling a bit up top so I picked up a .
*UPDATE* Here we are 5 years later and the car is still running great! A year or so after this post my MAC long tube headers bit the dust, so I picked up some American Racing Long Tube Headers and Offroad X-Pipe and gained even more HP. The final #’s are below.
Off with the old

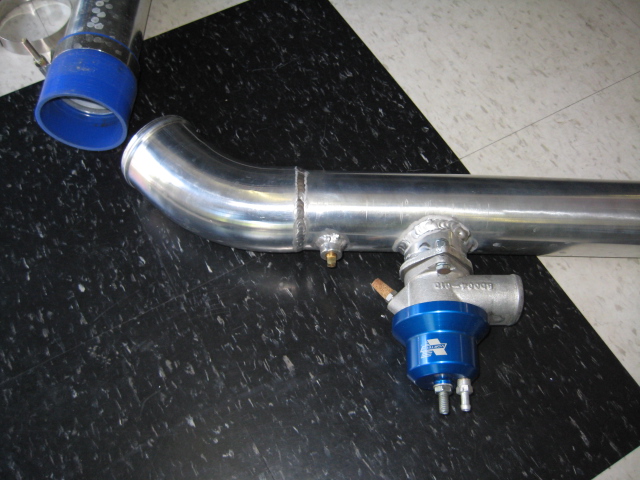

Vortech Maxflow Blow Off Valve
Let the modifying begin

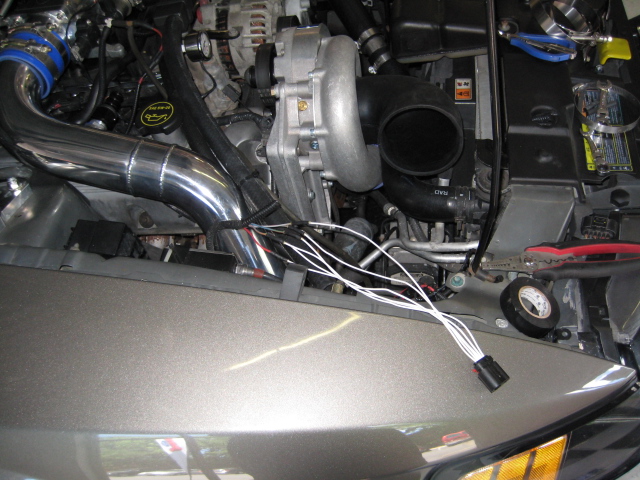

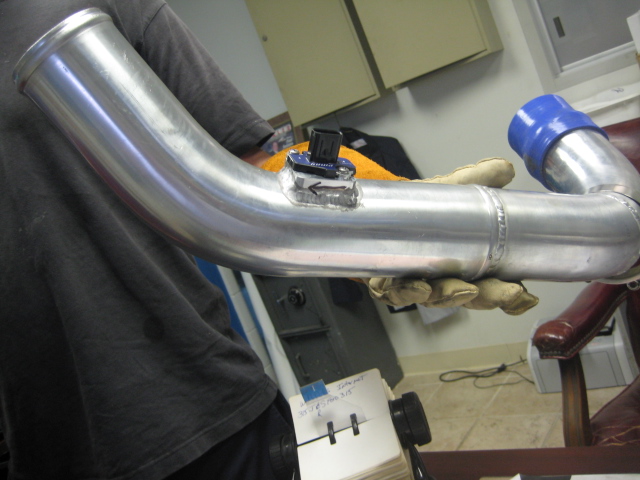

New MAF installed and being wired

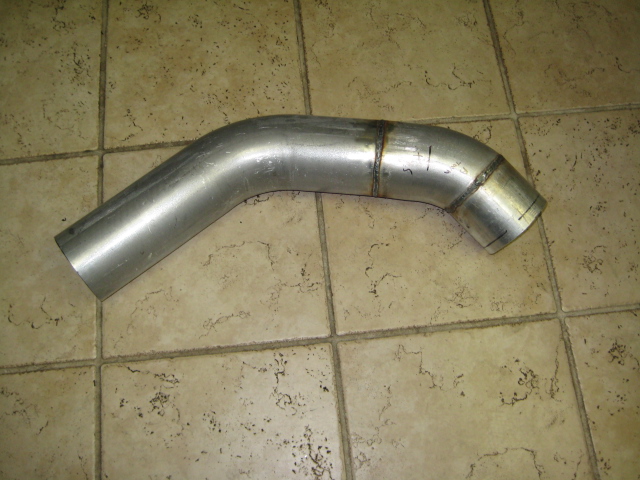

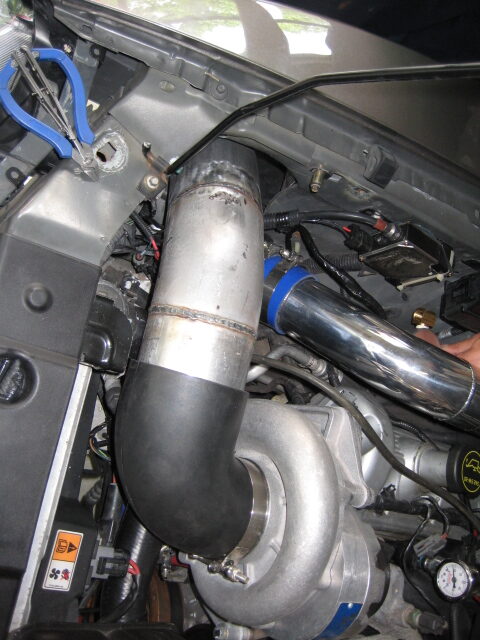

Custom made 4″ ‘Powerpipe’
Fits perfectly

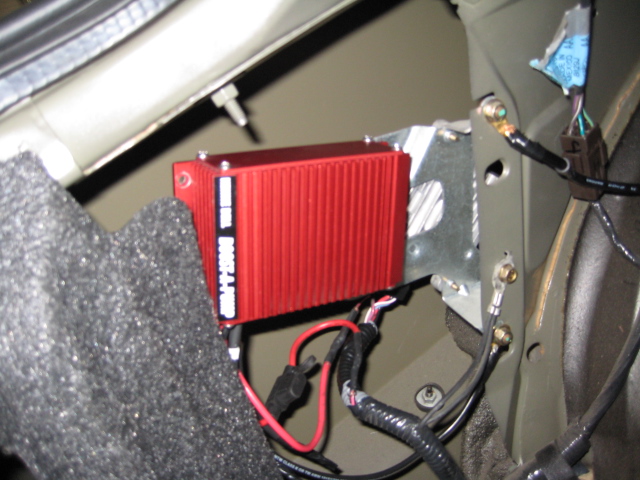

Kenne Belle Boost A Pump (BAP) Installed and wired
Intake pipe drying. Put a coat of POR-15 on there
Oil Catch Can Installed

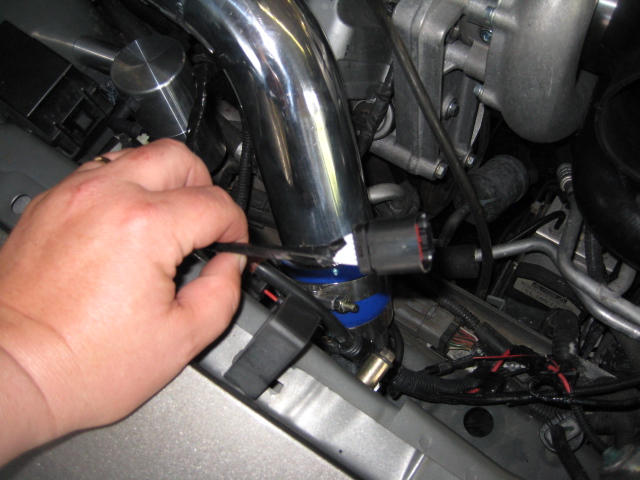

New MAF harness is complete

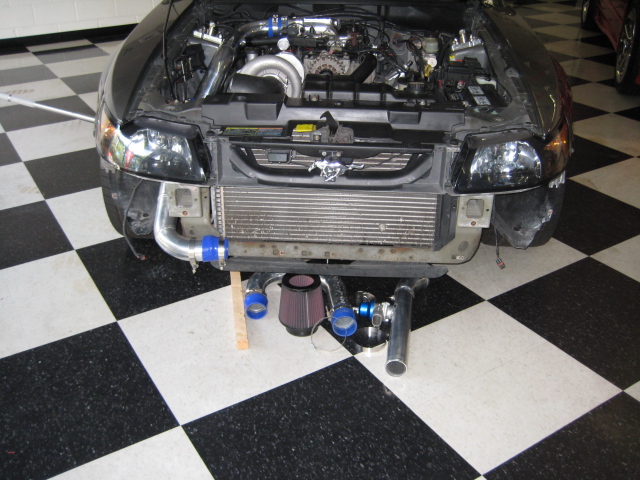

Ready to install new Treadstone Intercooler
MAF Installed

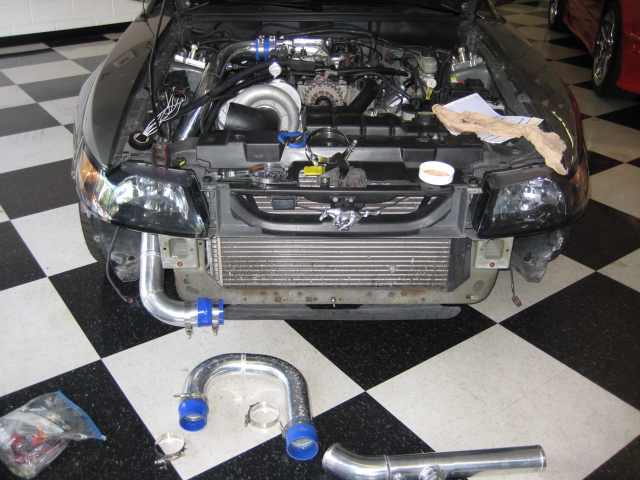

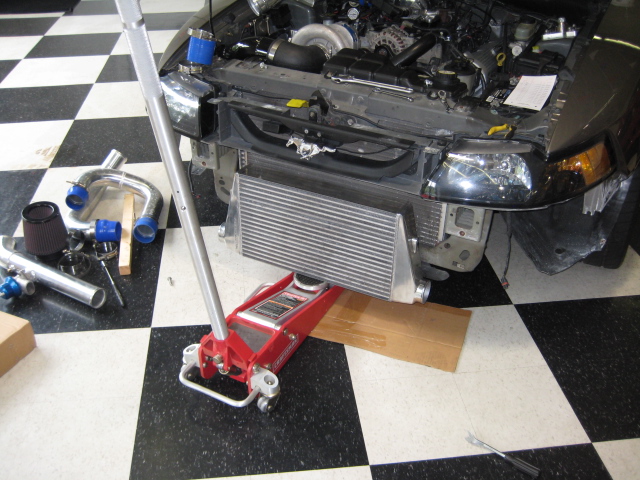

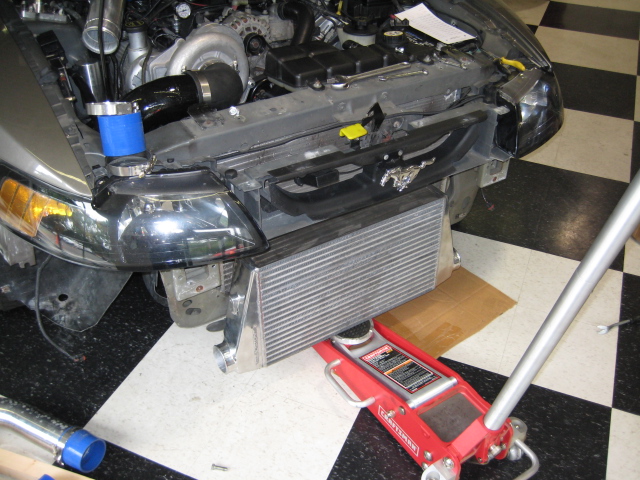

Treadstone Intercooler being set in place

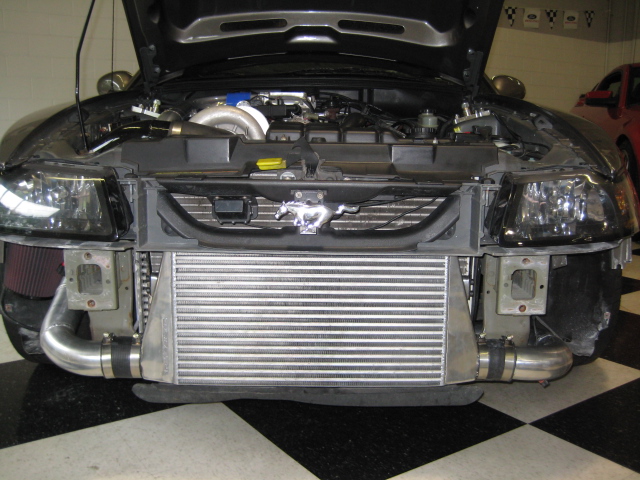

Another shot of the IC

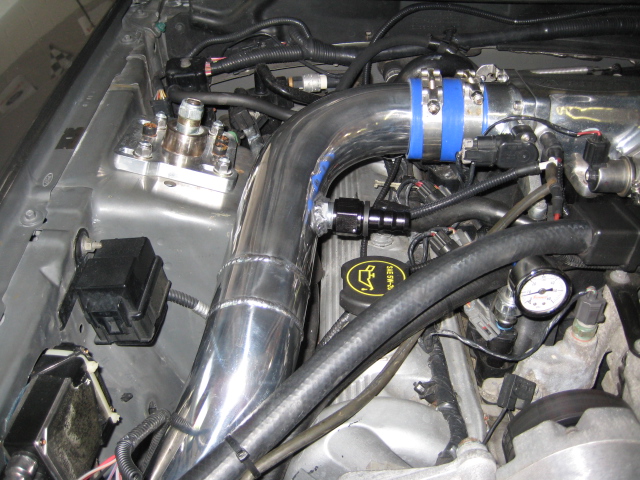

Intake pipe dried and installed

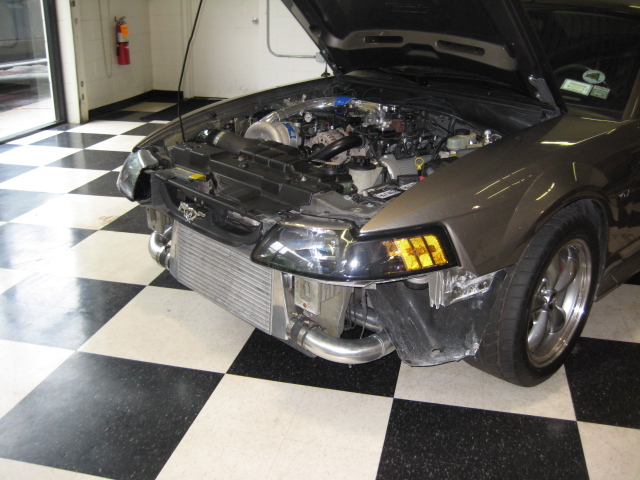

Intercooler mounted and installed

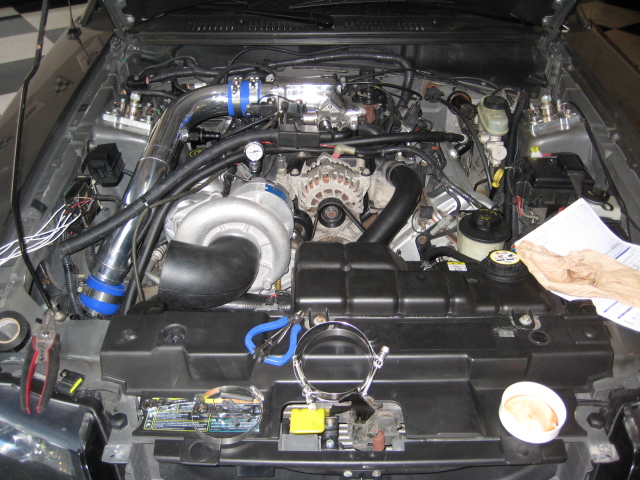

Almost there

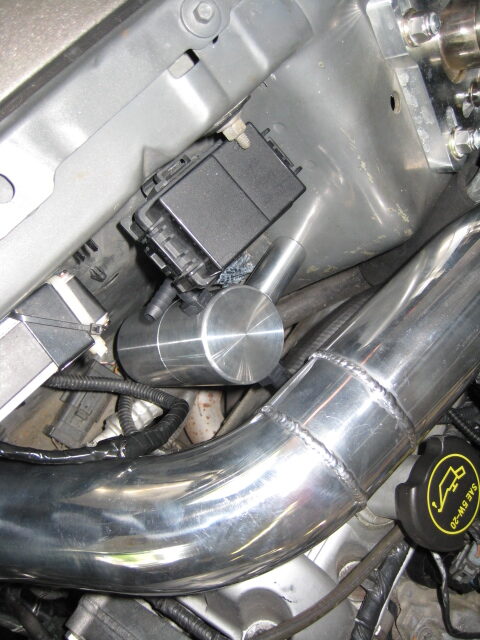

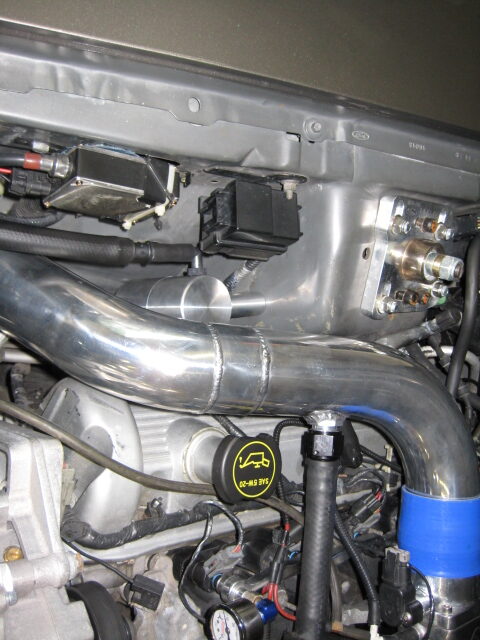

Oil Catch Can 100% complete

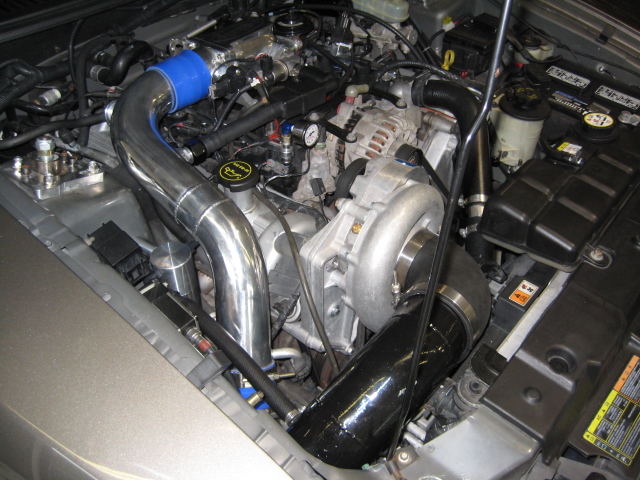

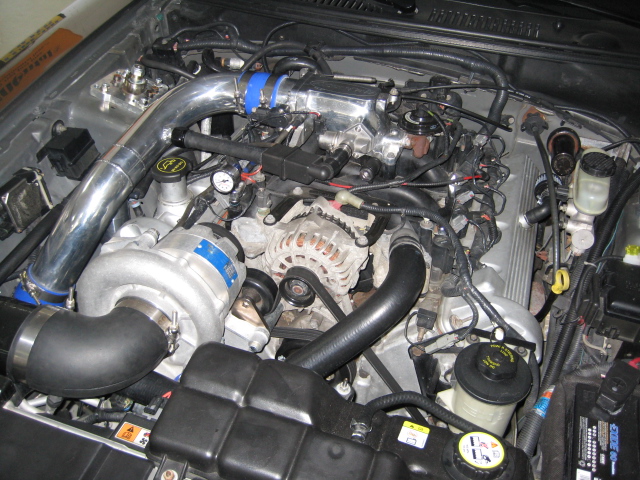

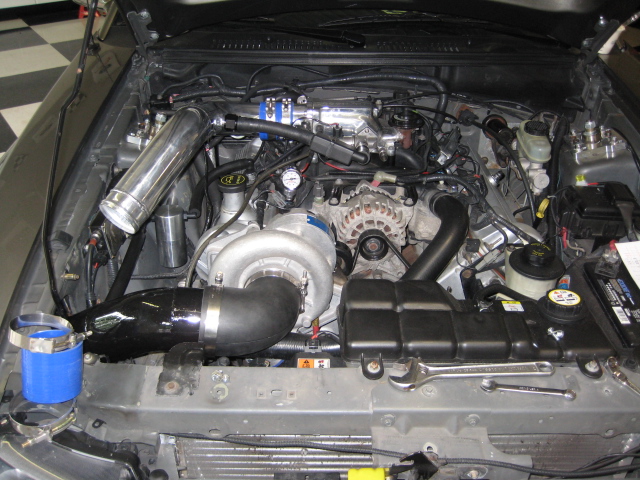

Everything in place and installed
Job done, time to dyno!
*NOTE* This video is before installing the American Racing Long Tube Headers

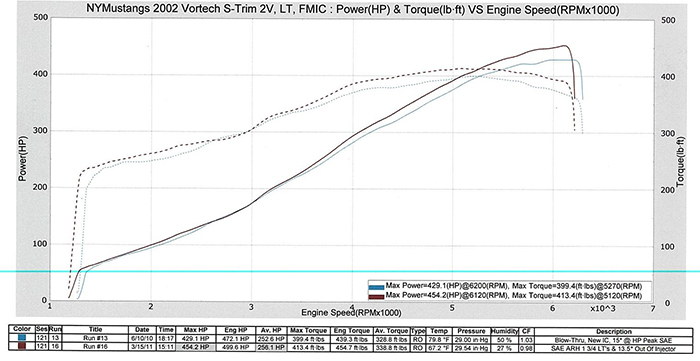

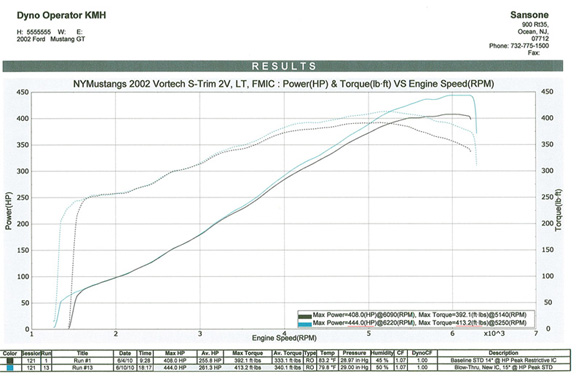

Dyno Sheet
Dyno #’s
SAE: 454 RWHP / 413 RWTQ
STD: 473 RWHP / 431 RWTQ
Dyno Sheet Before American Racing Long Tube Headers & Offroad X-Pipe
#’s before headers / x-pipe – 444 RWHP / 413 RWTQ. First run on the dyno was 408 RWHP, this was with the Treadstone intercooler. The next run, after the new intercooler and customizations (but before Headers), the #’s were 444 rwhp. So I picked up 36 RWHP when ditching the CX-Racing Intercooler.
