How to install an FR500 steering wheelThe FR500 Steering Wheel, which comes to us from Ford, is a racing-style steering wheel that was featured in the Ford Racing Technology's FR500 Mustang. The project car was to be a showcase of parts that Mustang owners could purchase to increase the performance and look of their Mustang.

So far, very few parts from the FR500 have been released, but, fortunately, the steering wheel has. It is one of the very few racing-style steering wheels available that allow for a stock-for-stock swap from the regular steering wheel. It allows for airbag, horn, and cruise control placement in the stock location.

The key feature to the FR500 wheel is that it is substantially fatter than the stock leather-wrapped steering wheel. The stock leather wheel measures 1.21" thick, while the FR500 measures 1.42". The feel is very noticeable. Also, there are perforations in the 3:00 and 9:00 positions to help with hand sweat, and the leather feels much softer than the stock one. It is also configured identically the same as the stock wheel, so replacing it is a very simple process. The wheel sells for ~$180 from various places. Gene Evans Ford is one source that I have found for them.

This article shows an install of the FR500 Steering Wheel on a 2001 Mustang. The wheel is listed as fitting 94-01 Mustangs, but the procedure is slightly different with some of the accessories. As with all procedures, consult the manufacturer's instructions and recommendations first. This is just How-I-Did-It.

The Hardware:

I purchased the steering wheel used from a friend. The only part that comes with the steering wheel is the wheel itself.

How to install an FR500 steering wheelPreparation:

Workspace: A well lit area that allows you to open the driver's side door.

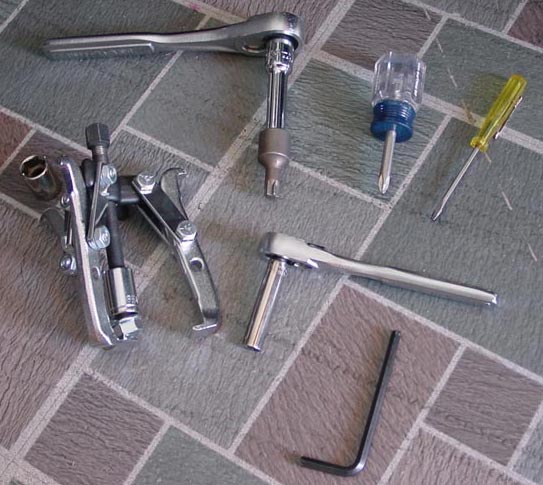

Tools:

Parts: Nothing extra needed.
Left-over Parts: Stock steering wheel.

Quick Instructions:

  1. Getting started
  2. Remove airbag
  3. Remove horn contact switches
  4. Remove connectors and additional screws
  5. Remove steering wheel
  6. Install the new steering wheel
  7. Install connectors, switches, screws
  8. Install airbag
  9. Finish up

Procedure:
Note:
Some full-sized images have additional information, arrows, etc.

(Click thumbnail for full-sized image)

Getting Started
When parking the car, be sure the wheels are straight and the steering wheel is in the straight-ahead position.

Next, disconnect the battery. This EXTREMELY IMPORTANT!! The airbag is fired by an electrical charge. If you do not disconnect the battery, you will risk discharging the airbag, and that is not good. It can be dangerous. Wait at least ten minutes (per SRS mandate) to allow the depletion of the airbag backup power supply.

How to install an FR500 steering wheelHow to install an FR500 steering wheel


Remove the Airbag

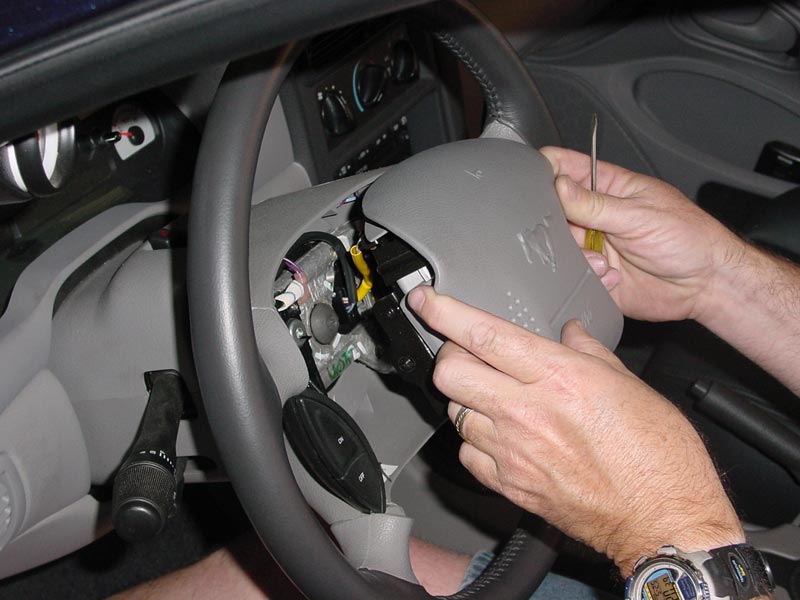

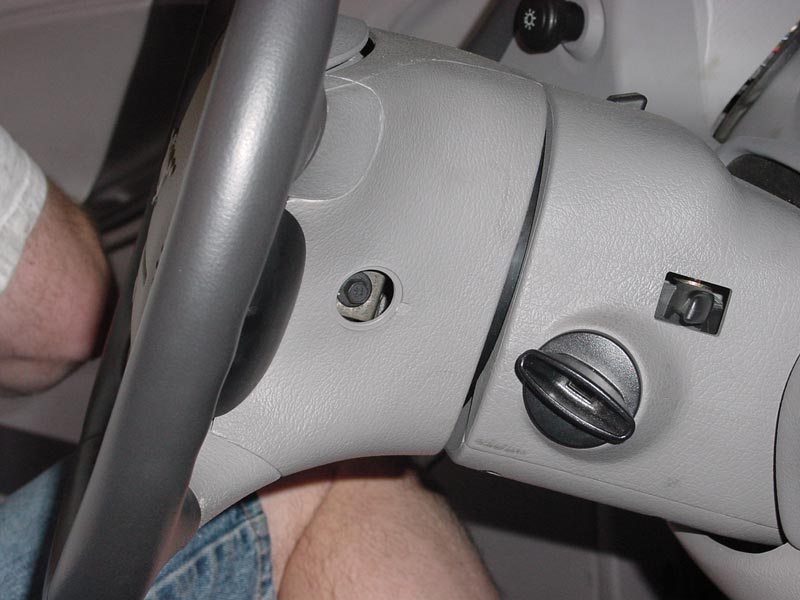

Pop the two steering wheel spoke covers from either side of the steering wheel. This will open the access to the airbag retaining screws. Remove the screws with the 5/16" socket.
How to install an FR500 steering wheel
Carefully lift the airbag straight off the wheel. How to install an FR500 steering wheel

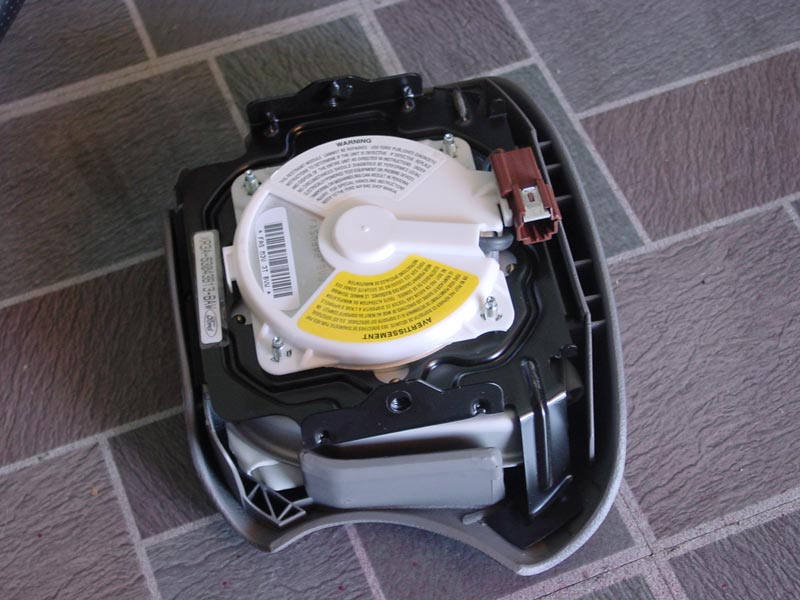

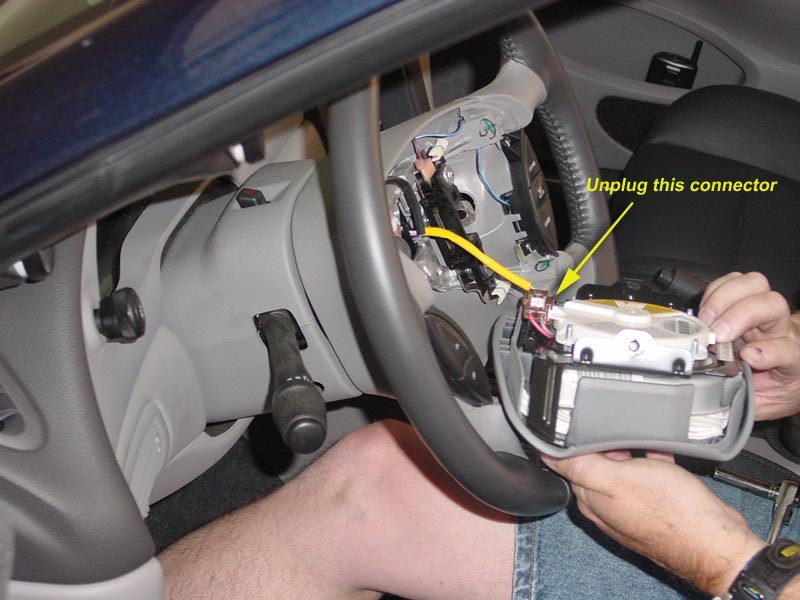

Disconnect the yellow wire from the airbag module. Once the airbag module is detached, set aside. Be sure to put it cover-down. The white plastic part of the airbag (which contains the charge) will be pointing up.

How to install an FR500 steering wheel

Remove Horn Contact Switches
Remove the four allen head bolts that fasten the horn switches to the steering wheel. Lift them up and place them out of the way.

How to install an FR500 steering wheel


Remove the Additional Fasteners

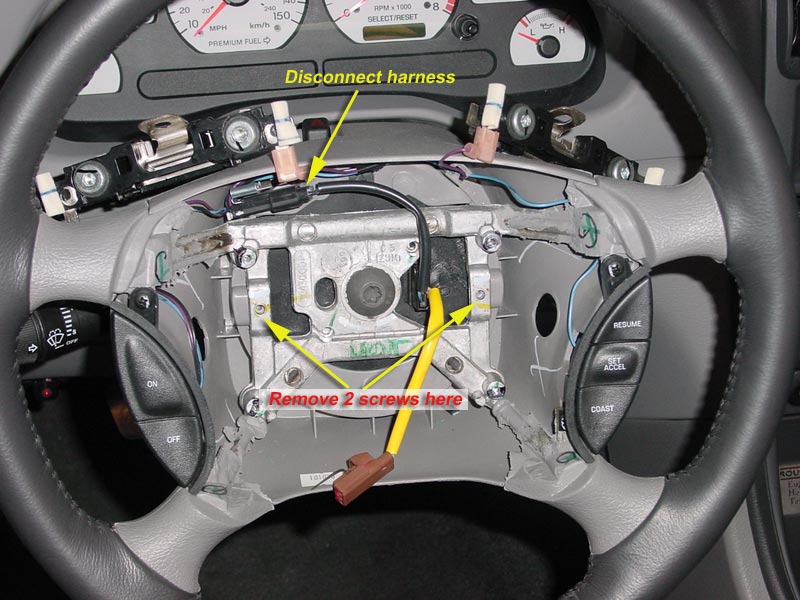

Remove the two Phillips screws in the center of the wheel. Disconnect the black wire harness.

How to install an FR500 steering wheel

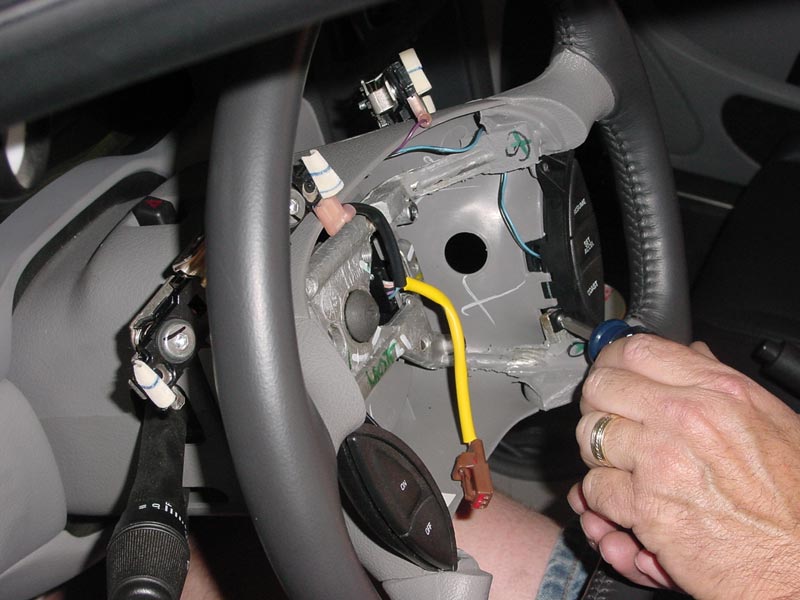

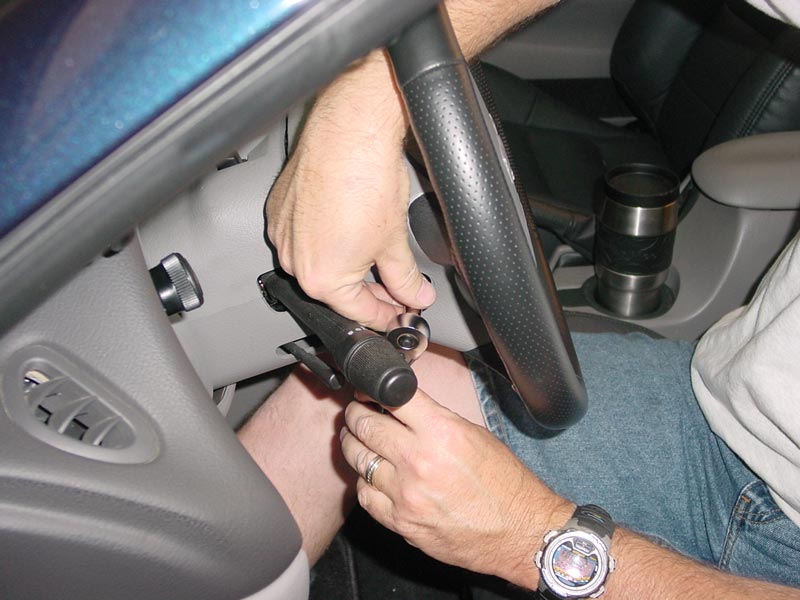

Next remove the cruise control switches. There are 2 phillips screws on each switch (use fat handled screwdriver for these). Slip them off and set off to the side. How to install an FR500 steering wheel

Remove the Steering Wheel
Remove the steering wheel bolt. The bolt uses a T50 Torx bit to remove it.

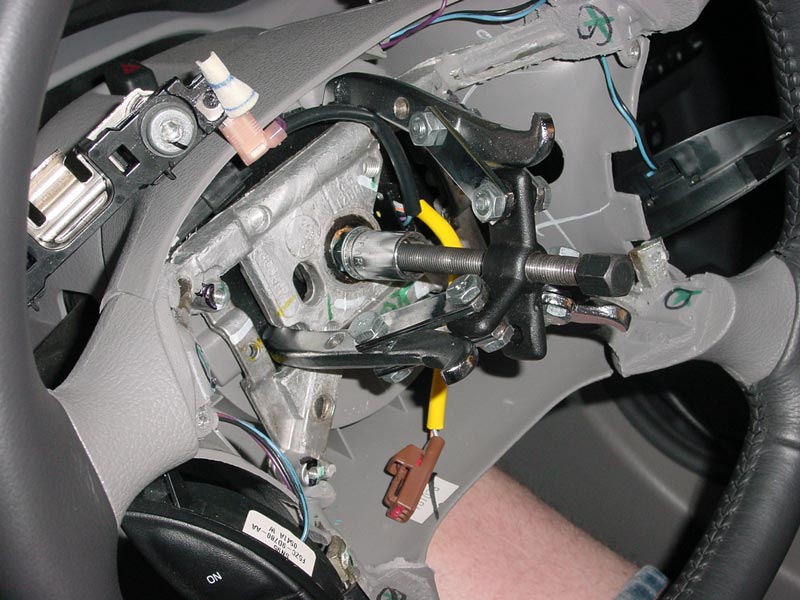

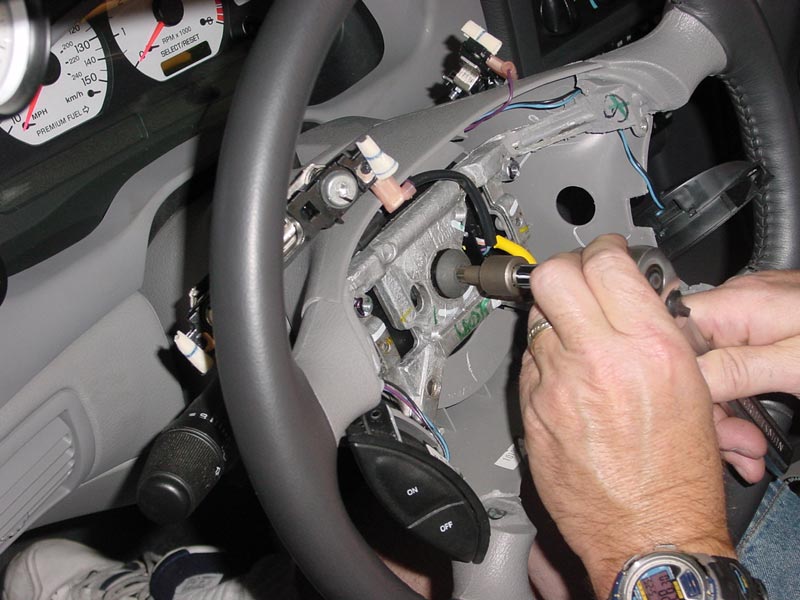

Once the bolt is removed, position the wheel puller/gear puller* onto the steering wheel as shown. Slowly pull the wheel off of the shaft.

NOTE: Use care when removing the steering wheel. It should not take a lot of force.

*A steering wheel / gear puller can be purchased or rented from your local auto parts store.

How to install an FR500 steering wheel
How to install an FR500 steering wheel

Install the New Steering Wheel

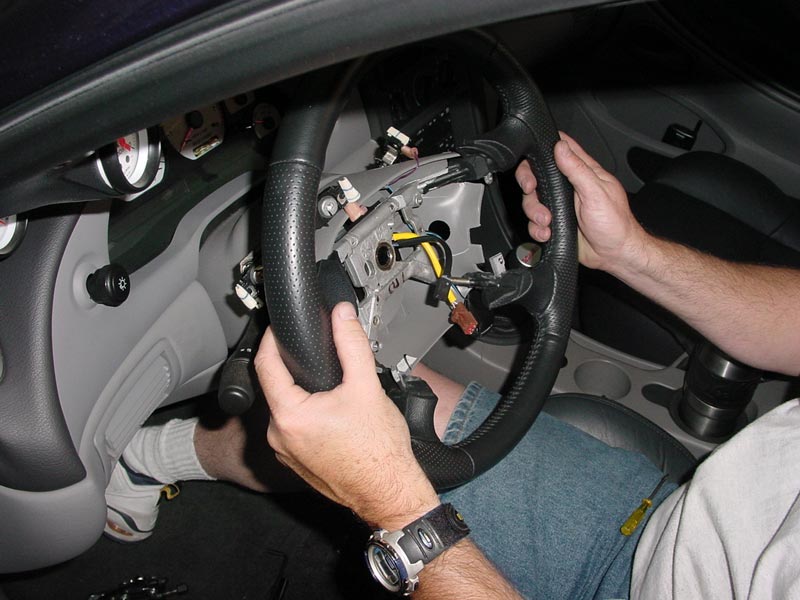

Slip the new steering wheel onto the steering wheel shaft. DO NOT FORCE OR POUND IT ON - THIS WILL CREATE SLOP IN YOUR STEERING!

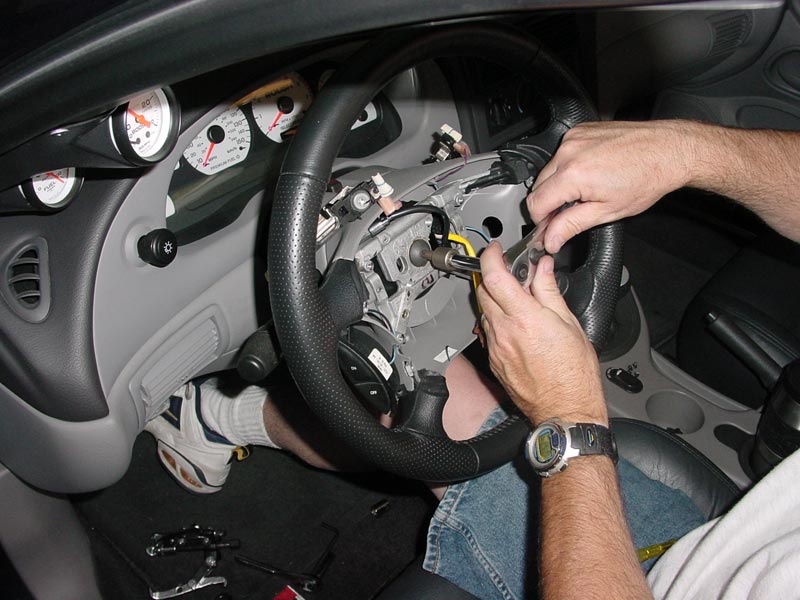

Insert the steering wheel bolt and begin threading. Once it is snug, turn the wheel slightly right and pinch into place with your leg. Continue to tighten the steering wheel bolt to 28 foot pounds.





How to install an FR500 steering wheel
How to install an FR500 steering wheel

Install Connectors, Switches, and Screws
First, install the two small phillips screws in the center of the wheel. Reconnect the black wire connector at the top of the steering wheel.

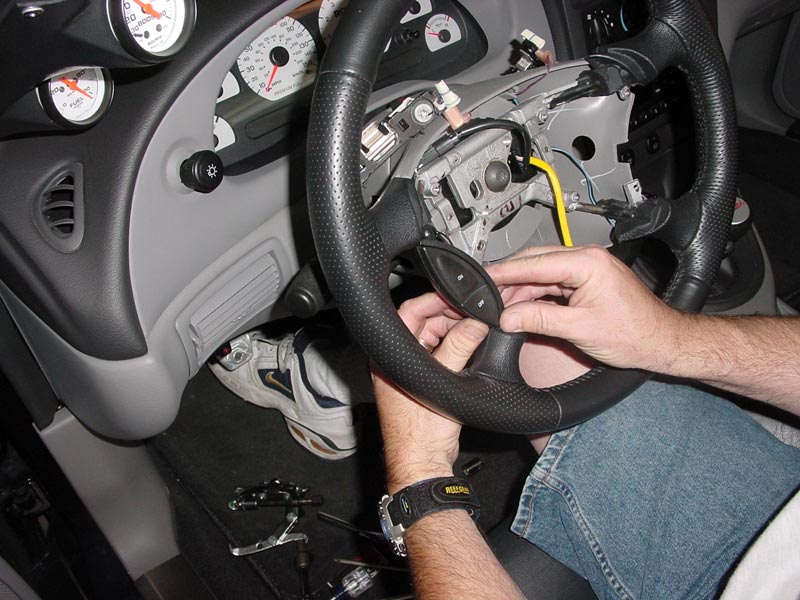

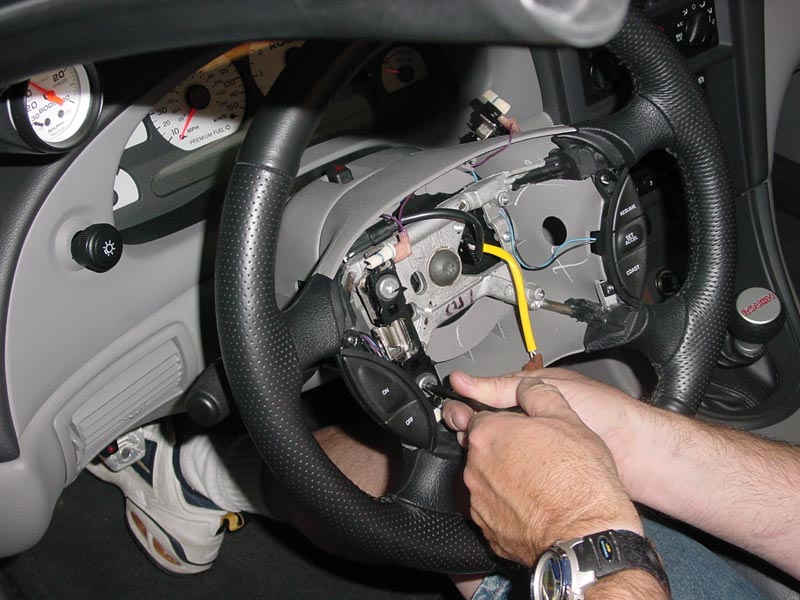

Next, install the cruise control switches. The bottom part of the switches slide onto the metal piece on the wheel. The top part of the switch sits on top of the metal tab.

How to install an FR500 steering wheel

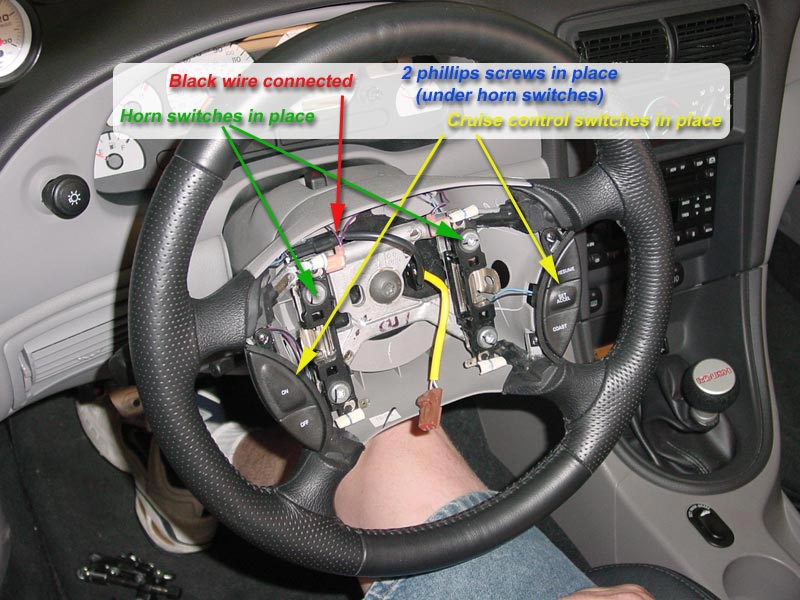

Install the 2 horn contact switches with the allen bolts.The horn switches should push in and out easily when installed properly. How to install an FR500 steering wheel
Install the 2 horn contact switches with the allen bolts.The horn switches should push in and out easily when installed properly. Insure all screws and connectors are installed. How to install an FR500 steering wheel

Install the Airbag
Reconnect the yellow wire to the airbag module. Point the airbag module away from you while you do this (just to be safe). Slowly slip the airbag back into place. Install the two airbag retainer screws and spoke covers.

How to install an FR500 steering wheel

How to install an FR500 steering wheel


Finishing Up!
Pick up your stuff and reconnect the battery. Test out your horn, then sit behind the wheel and make vroom sounds while you grip your new wheel!!
How to install an FR500 steering wheel

Its Done!

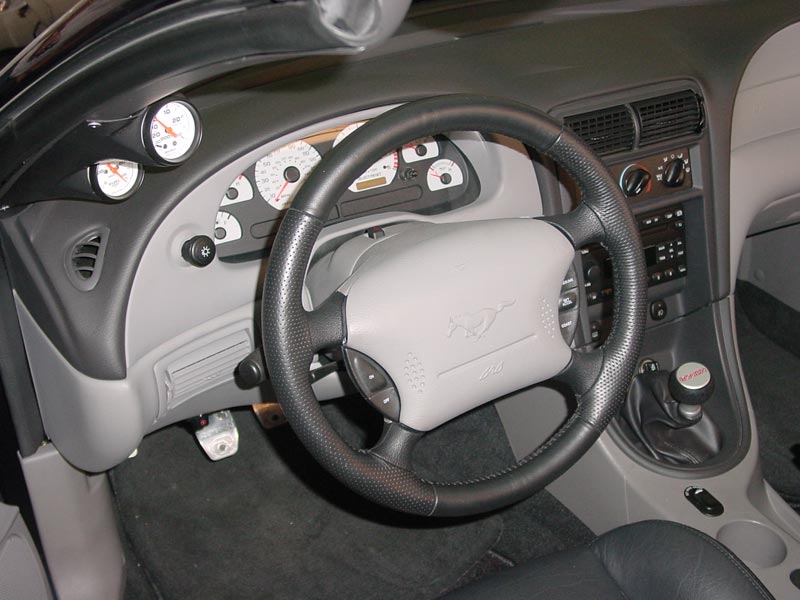

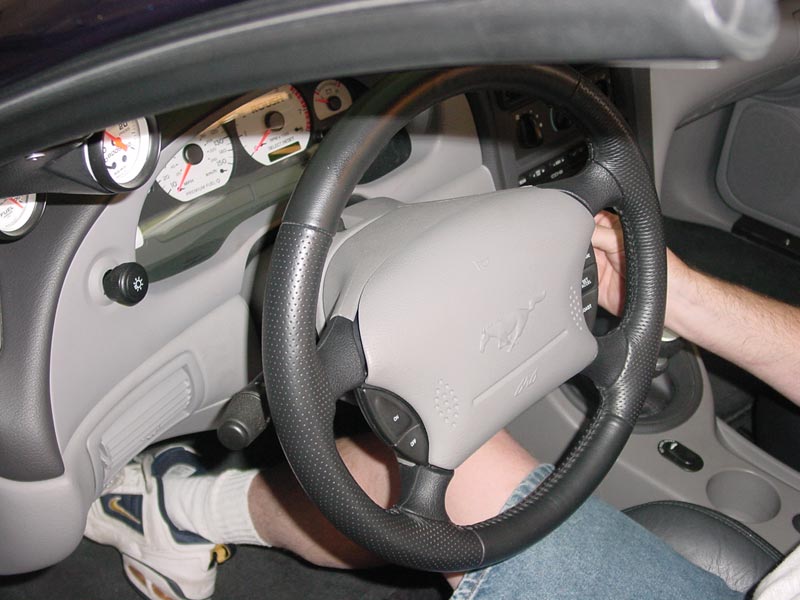

Another very simple modification for your Mustang. The FR500 has a great feel, looks very good, and is able to use all of your current steering wheel accessories.

That's it!

found @ http://www.fnsweet.com
By: Kev
